Ceramic Packages for Light Emitting / Detecting Device Modules

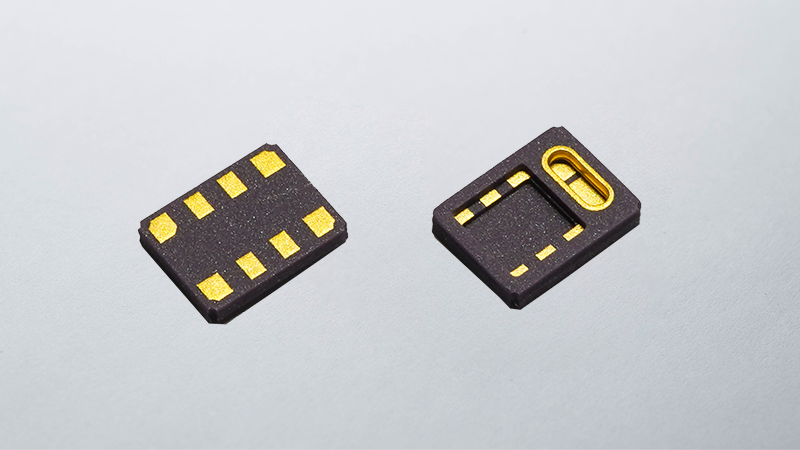

Ceramic Packages for Light Emitting/Detecting Device Modules (consumer applications) Sensors with integrated light emitters and detectors are used in smartphones and other consumer devices that require miniaturization and multi-functionality.
Ceramic packages offer high design flexibility for the customization of specific customer requirements.
Features
High Thermal Dissipation
Miniaturization
Surface
Mounting
Mounting
Light-Shielding
3D Circuitry
Design Integration
Design Integration
Ceramic Package Concept Examples
Dual Cavity Concept for Light Shielding
Ceramic materials can offer strong light-shielding characteristics; cavity walls provide light shielding.

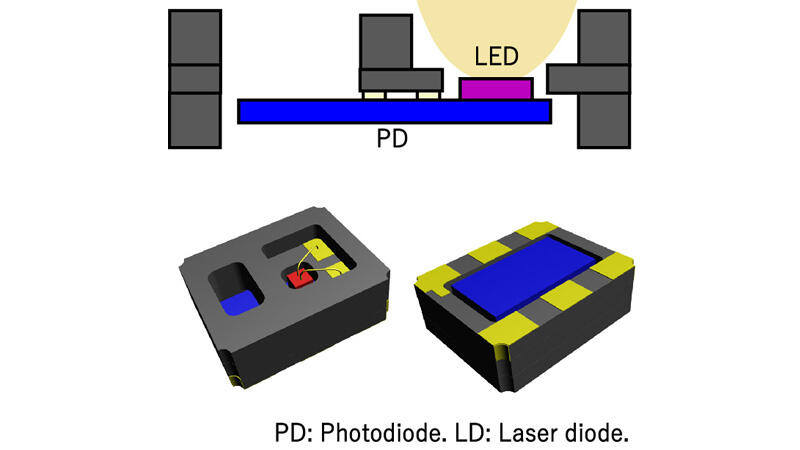

Stacked Concept for Light Shielding
Patented 3D structure enables the LED to be stacked on a PD and further miniaturized.

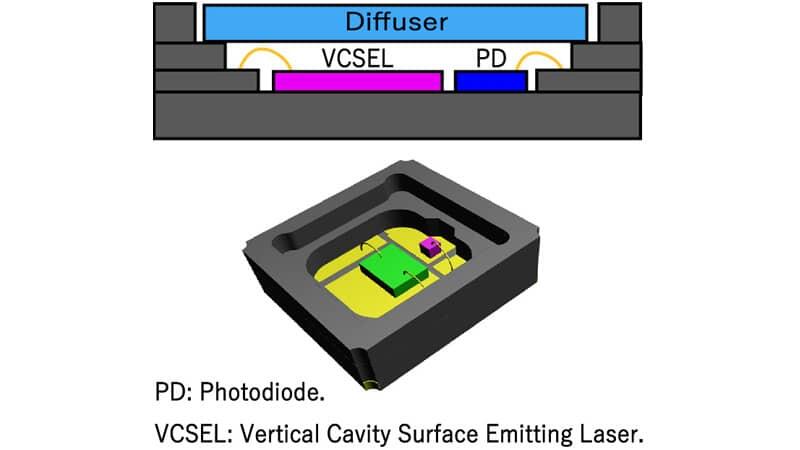

Miniaturized Single-Cavity Concept

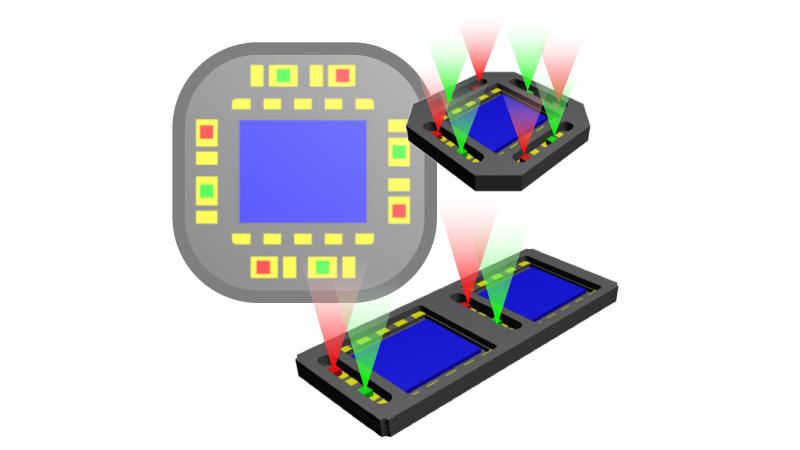

Two IC Chips are cavity-mounted (PD is equipped with reflected-light recognition function); package forms a shelf for mounting a diffuser.Multi Element-Concept
Allows IC Chips of multiple wavelengths in a single package.

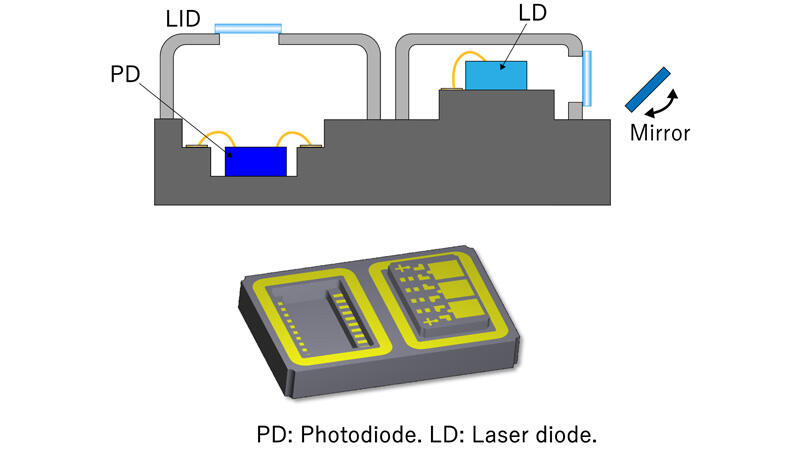

Side-Emitting Ceramic Package Concept for Side-Emitting Devices
3D structure facilitates side-emitting LD configuration using external mirror.
Other custom shapes and configurations are available. Please contact us for details.
