Millimeter-Wave (30~100GHz) Packages

Millimeter-Wave (30~100GHz) Packages

Advanced packages for RF devices, Millimeter-Wave Power Amplifiers, and Monolithic Microwave ICs (MMICs) incorporate Kyocera's multilayer ceramics and metal brazing technologies, which facilitate 3D circuitry, and enable metals and ceramics to be brazed together. Kyocera designs optimal Input/Output transitions for high-speed, wide-band mobile phone base stations and other wireless networks. Because high-power devices generate heat, Kyocera designs solutions with thermally conductive metal heat spreaders brazed directly onto the ceramic packages.

Features

High-Frequency Characteristics
High-Frequency Characteristics
High Heat Dissipation
High Heat Dissipation
Hermetic Sealing
Hermetic Sealing

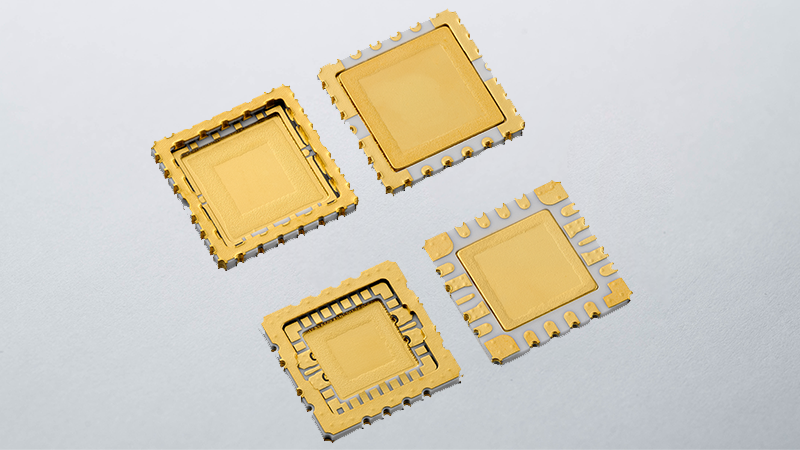

Surface Mount Millimeter-Wave Packages

Surface Mount Millimeter-Wave Packages

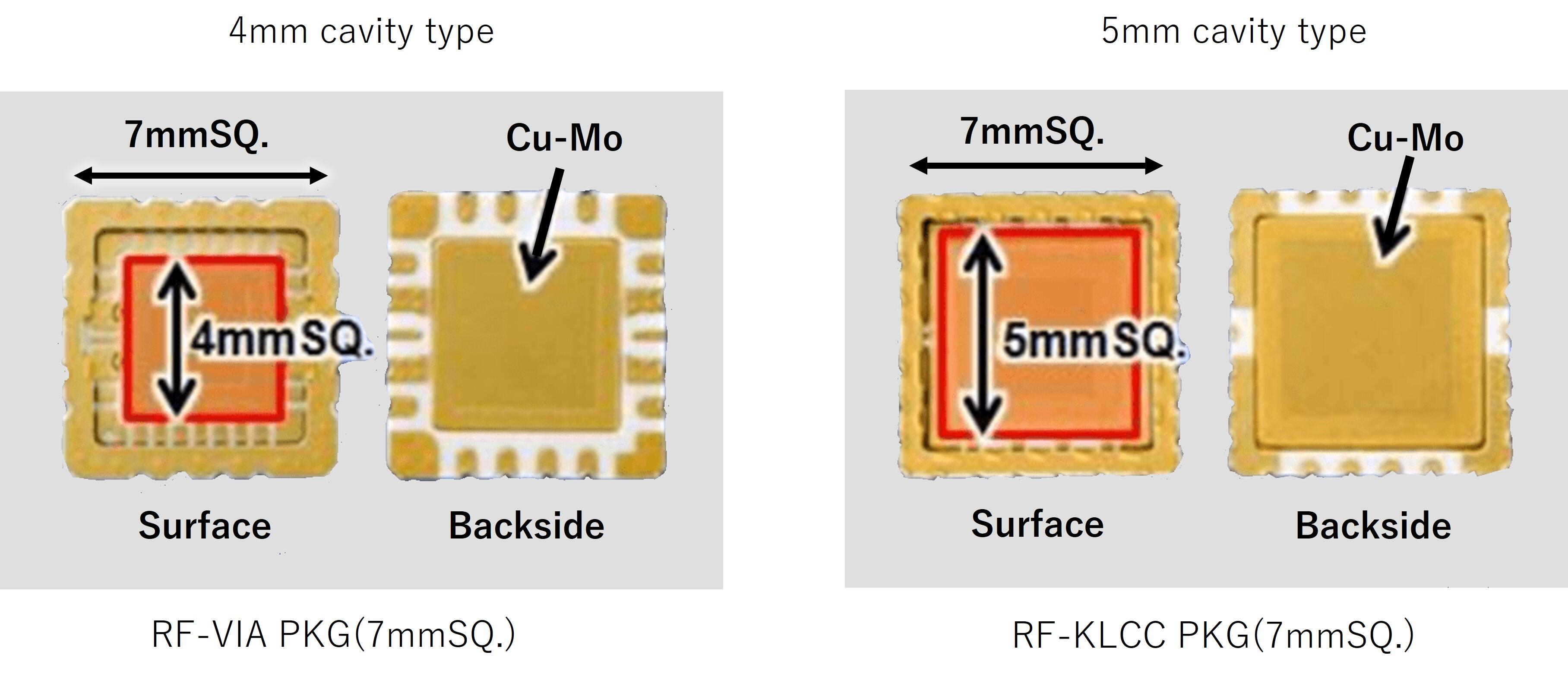

Kyocera provides miniaturized surface-mount packages for RF devices such as millimeter-wave MMICs. The package’s I/O terminals are optimized for millimeter-wave frequency ranges. To efficiently dissipate heat, a CuMo heat spreader with high thermal conductivity is brazed onto the package bottom.

Surface Mount Millimeter-Wave Packages

For higher-power devices, Kyocera’s RF-KLCC package offers a Cu heat spreader with heat dissipation performance even better than CuMo solutions.

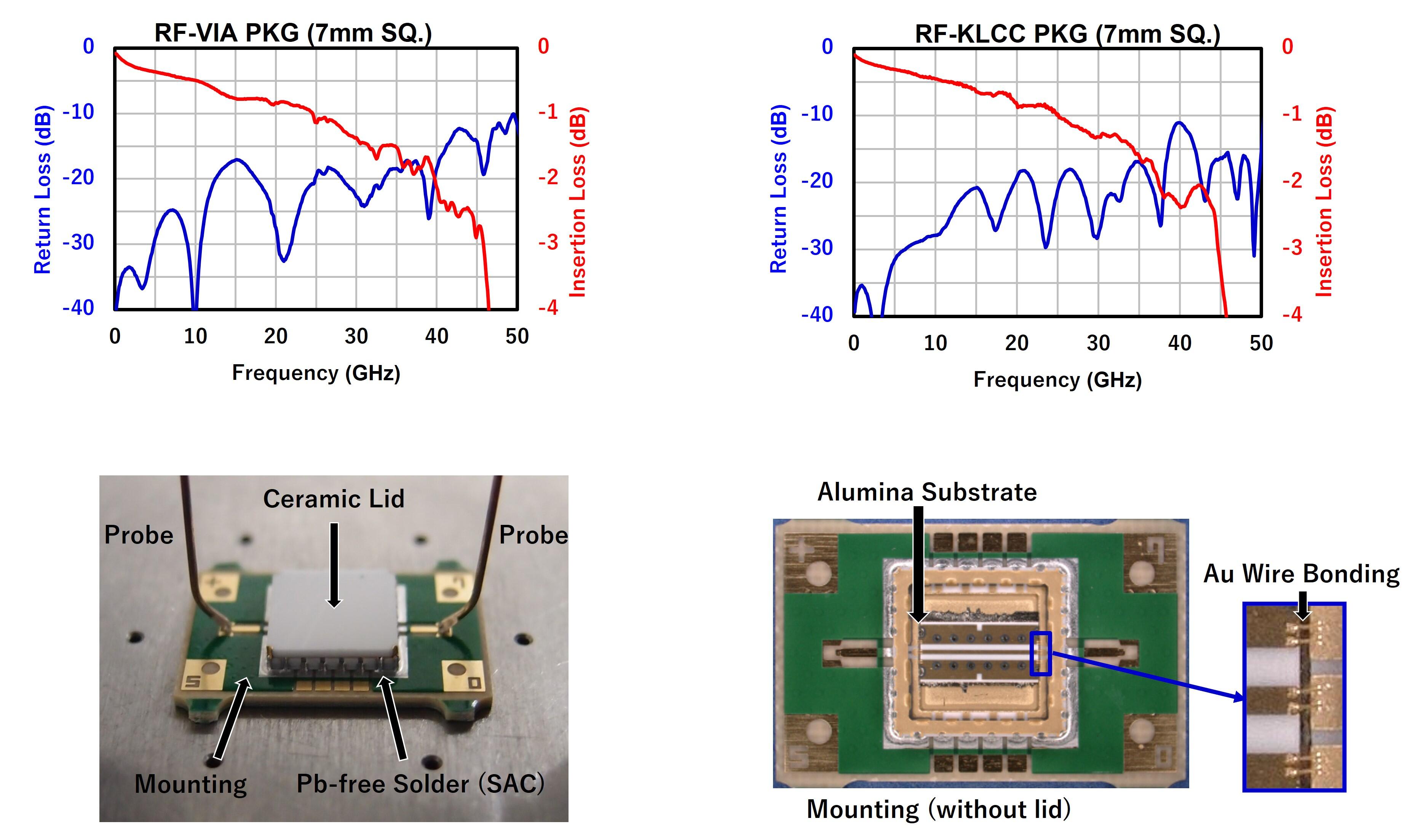

High Frequency Characteristics

high_frequency_char

Package with Waveguide Conversion Port

miri_heatspreader

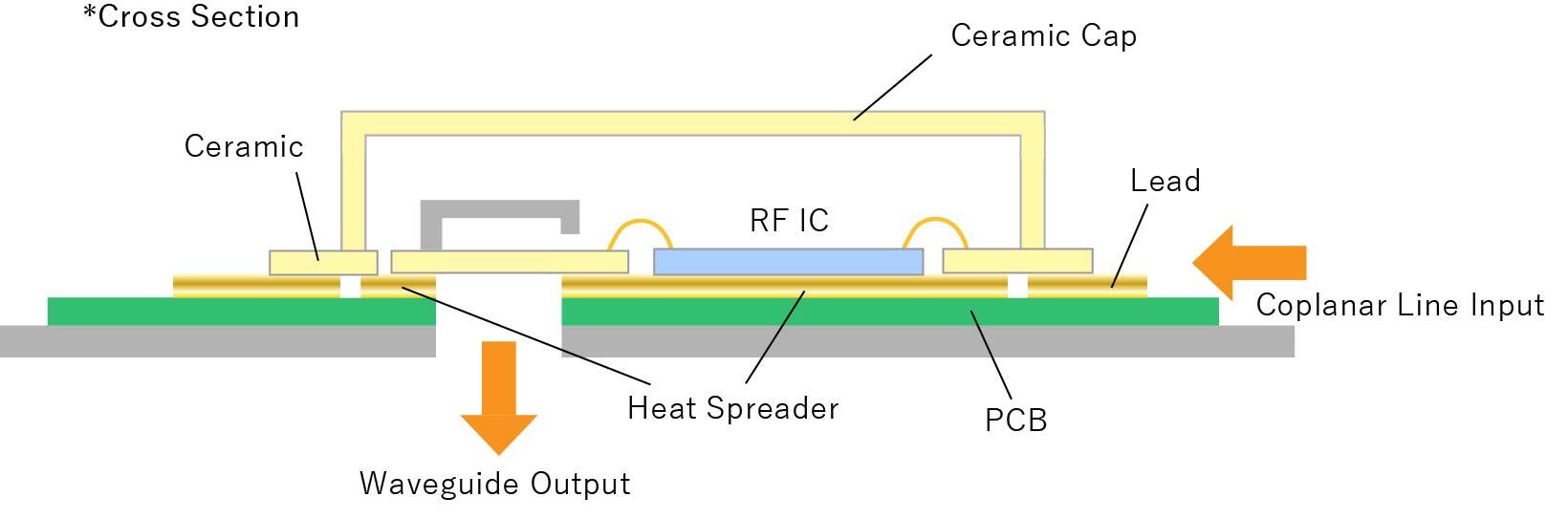

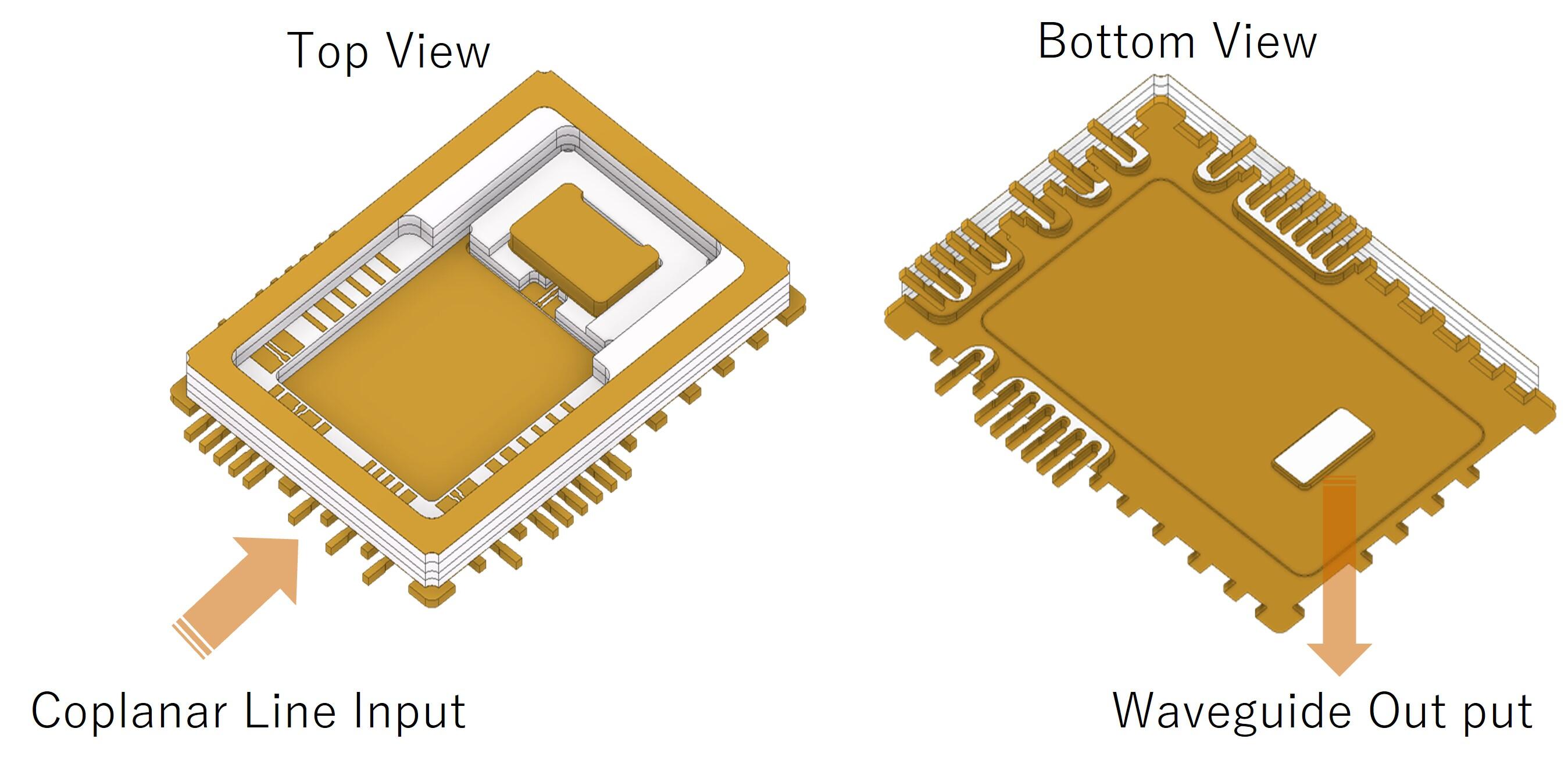

When a waveguide I/O interface is required, Kyocera offers ceramic packages with waveguide converter ports that can transmit signals from MMICs and other RF devices at lower losses. Additionally, Kyocera’s CuMo heat spreader with high thermal conductivity is brazed to the package to dissipate heat efficiently.

%E3%83%9F%E3%83%AA%E6%B3%A2_%E3%82%A4%E3%83%A9%E3%82%B9%E3%83%88

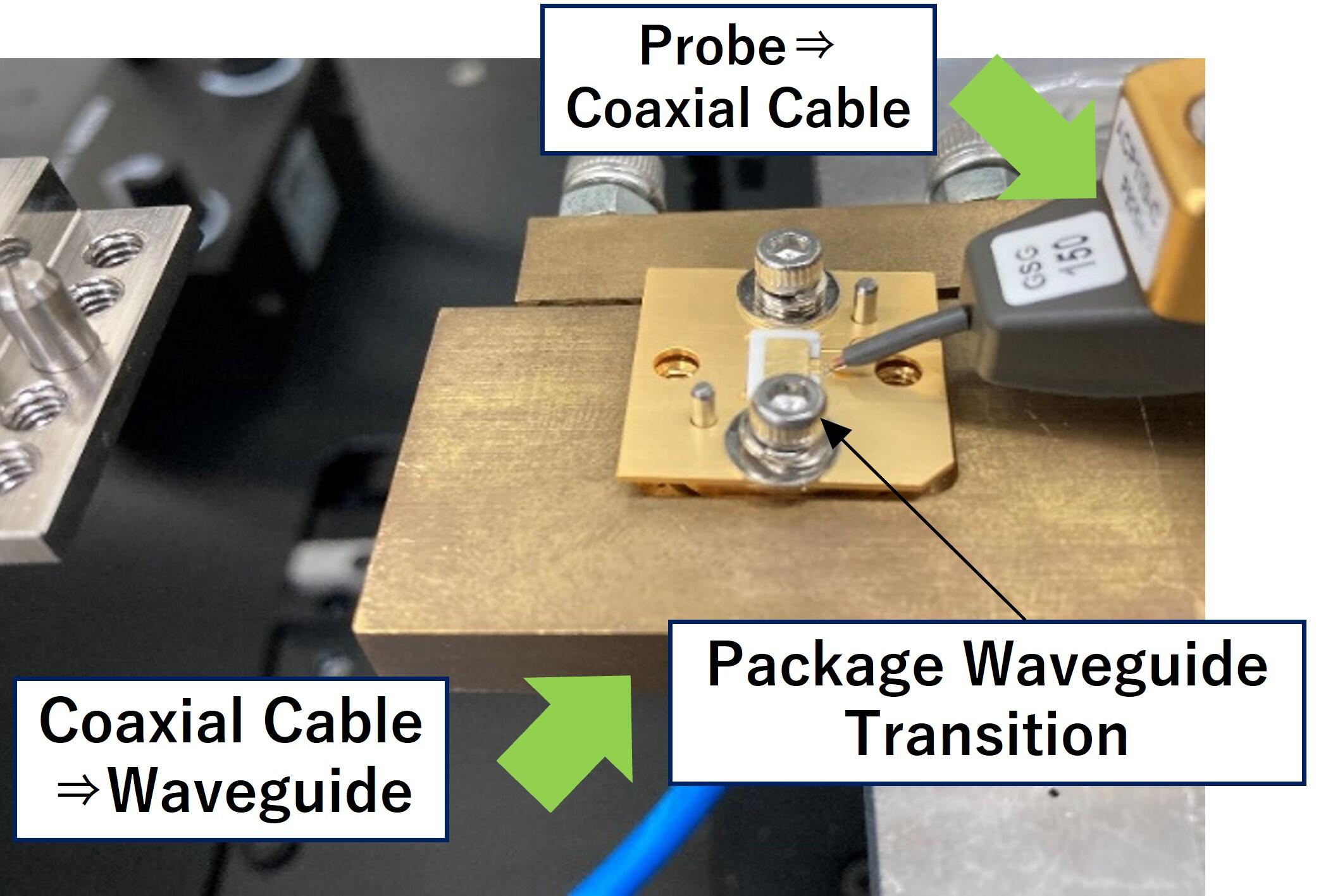

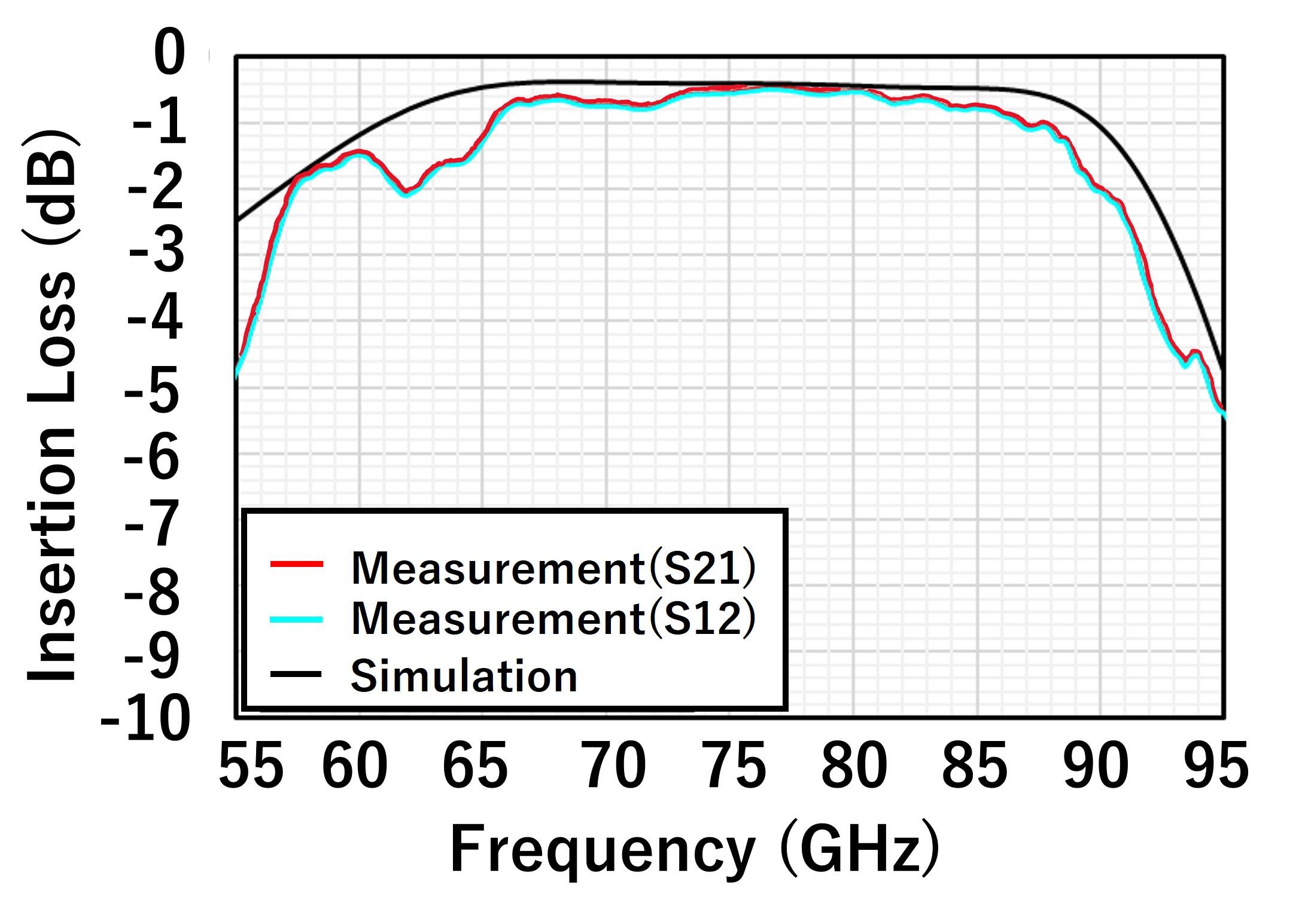

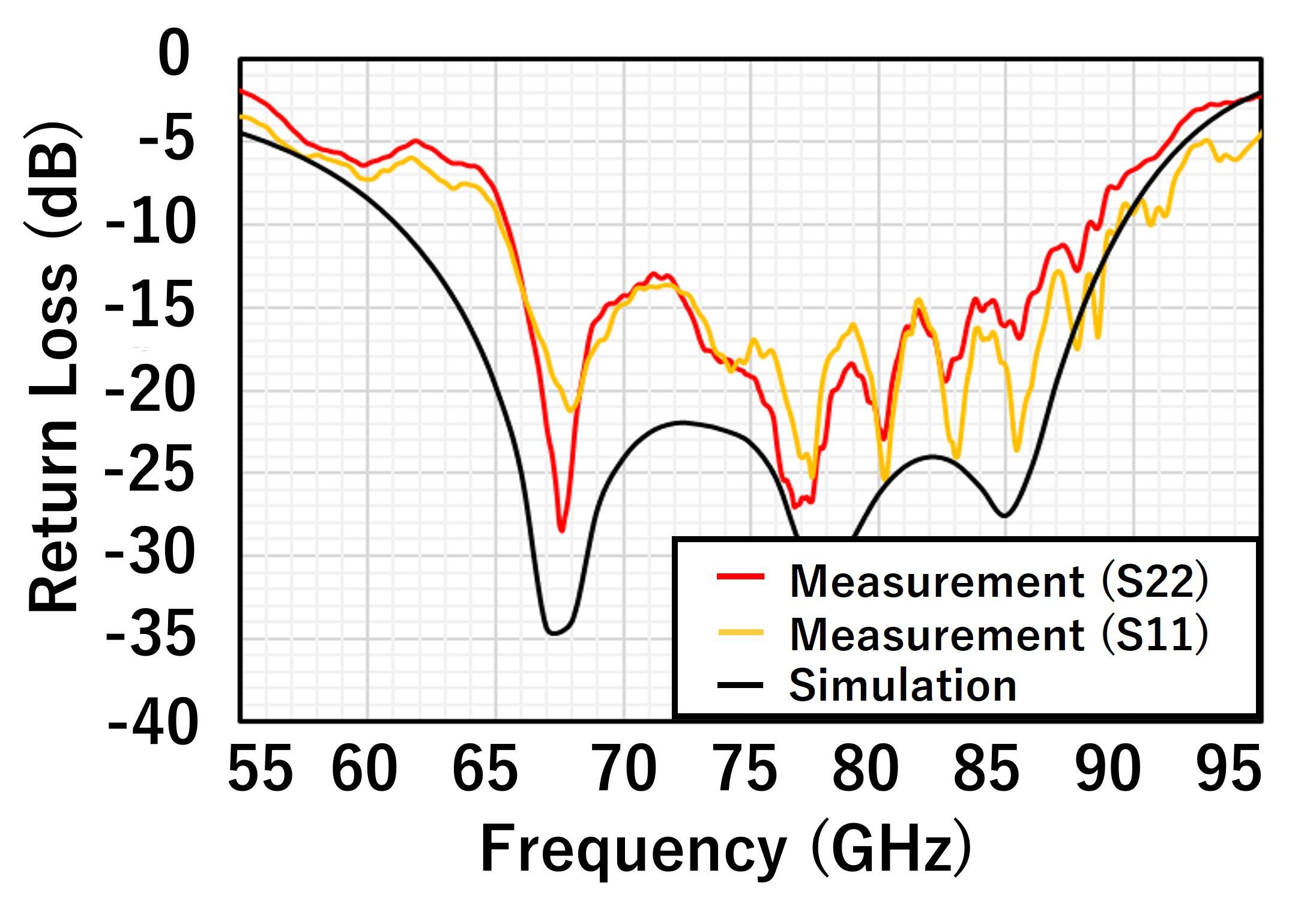

E-Band (71~86Hz) Waveguide Converter Port

miri_1
miri_2
miri_3

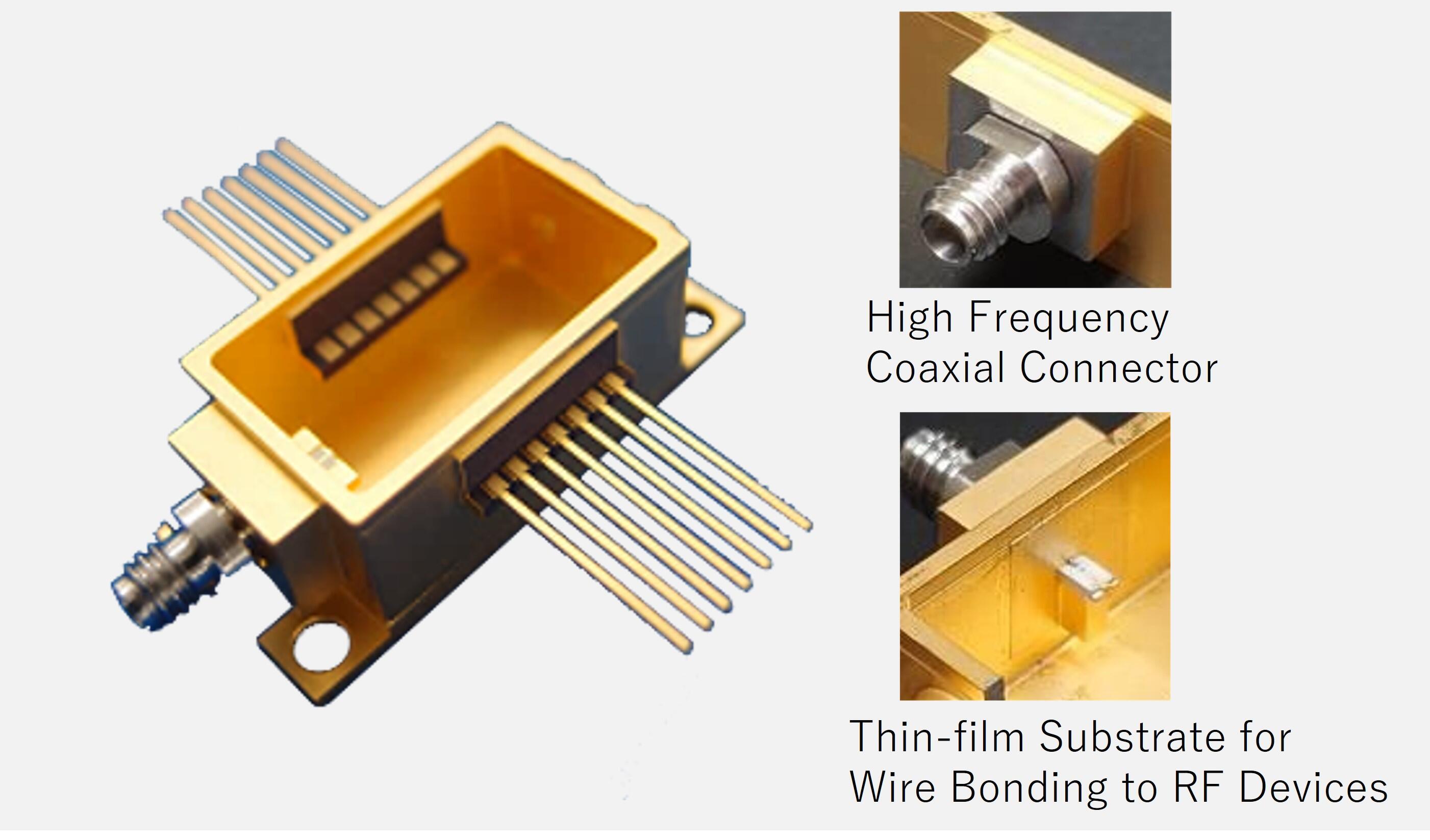

Package with High-Frequency Coaxial Connector

Package with High-Frequency Coaxial Connector

For coaxial cable-I/O interface, Kyocera offers packages that enable low-loss transition from RF devices, including millimeter-wave and MMICs. To dissipate heat efficiently, a CuMo heat spreader with high thermal conductivity is brazed to the bottom side of the metal package with ceramic feedthrough.

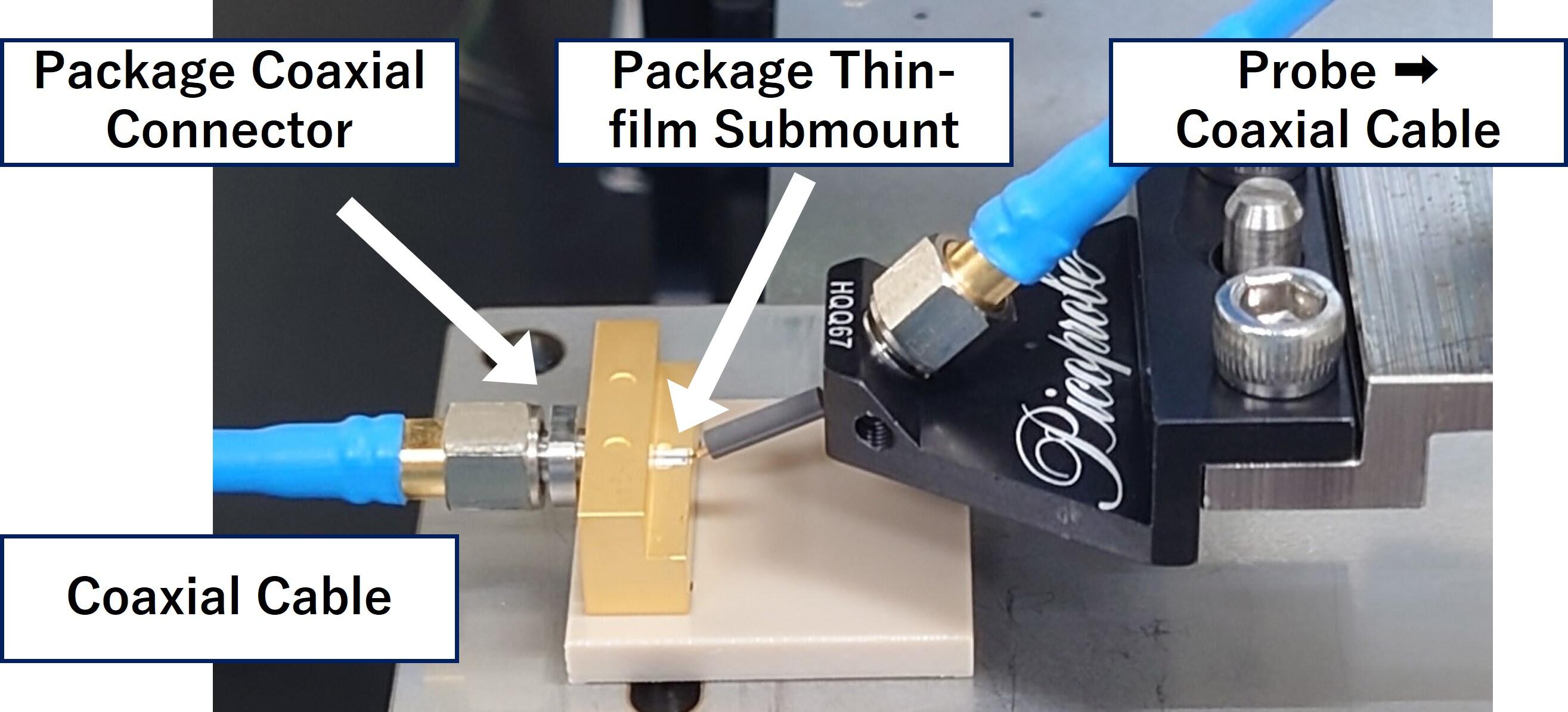

Thin-Film Submount with High-Frequency Coaxial Connector
measurement

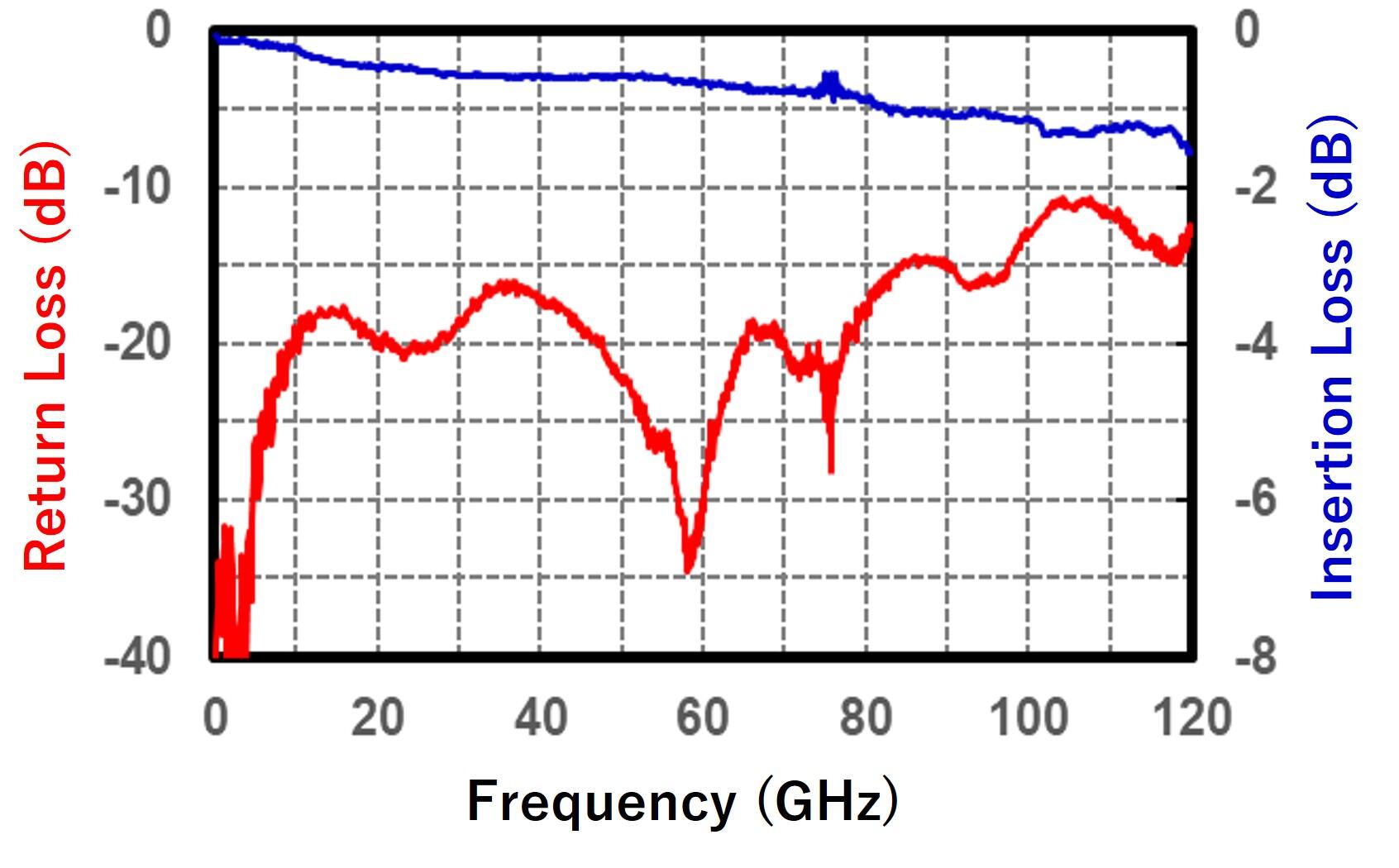

Measurement Results
measurement_results_graph
