MIC Substrates
MIC Substrates

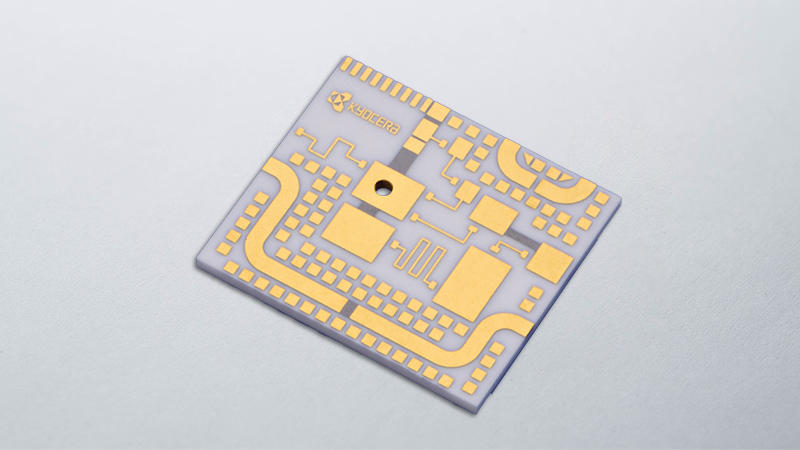

Kyocera offers Microwave Integrated Circuit (MIC) substrates with thin-film circuitry metallized onto ceramic. Substrate options include high-purity (99.6%) alumina.

Thin-Film Resistors

Resistor Material Ta2N
Sheet Resistance (Ω/SQ) 10～100
Temperature Coefficient of Resistance (ppm/K) -25 to 85°C -100+/-20
Tolerance without Trimming +/-20%
Tolerance with Trimming +/-3%
Long-Term Reliability: Change in resistance after high-temperature storage (125°C, 1000 hours) 0.4% MAX
