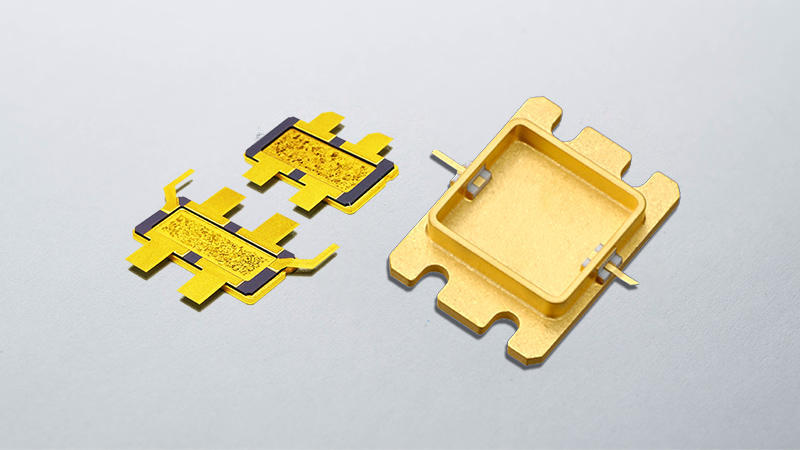

Ceramic Packages for Microwave Power Transistors (up to 20GHz)

Ceramic Packages for Microwave Power Transistors (up to 20GHz)

Kyocera offers packages for compound semiconductors (including GaN/GaAs), which are used in FET and HEMT devices for microwave communication. High thermal-conductive heat spreaders support high-power and high-reliability applications.

*FET: Field Effect Transistor
*HEMT: High Electron Mobility Transistor

Features

High Thermal Conductivity
High Thermal Conductivity
High Frequency Design
High Frequency Design
High Reliability
High Reliability

Heat-Spreader Material Characteristics

※O.F.H.C.:Oxygen Free High Conductivity

Available Heat-Spreader Materials Coefficient of
Linear Thermal Expansion
(/K) (RT ~400℃)
Thermal Conductivity
(W/m・K)
Thermal Resistance
(K/W)
Bulk Density
(g/cm³)
Hardness
(Hv)
Tensile Strength
(MPa)
Young’s Modulus
of Elasticity
(Gpa)
Heat-Spreader
Min Thickness
(mm)
O.F.H.C Copper 19.0 x 10-6 391 0.85 8.9 80 206 117 0.2
Copper Tungsten
(CuW)
10/90 (%) 7.0 x 10-6 175 1.91 16.8 300 882 313 0.2
15/85 (%) 7.8 x 10-6 185 1.80 16.3 280 843 294 0.2
20/80 (%) 8.8 x 10-6 200 1.67 15.6 260 784 265 0.2
25/75 (%) 9.5 x 10-6 230 1.45 14.8 240 686 225 0.2
Copper Molybdenum 35/65 (%) * 8.1x 10-6 210 1.59 9.7 162 560 208 0.15
40/60 (%) * 8.5x 10-6 220 1.52 9.5 180 608 206 0.15
50/50 (%) * 10.4x 10-6 260 1.28 9.5 150 539 186 0.15
60/40 (%) * 10.8x 10-6 275 1.21 9.4 130 461 157 0.15
CPC®141 * 7.8 x 10-6 200 1.67 9.5 N/A 380 160 0.5
CPC®232 * 8.8x 10-6 235 1.42 9.3 N/A 350 130 0.7
KYCM® Cu/Mo/Cu 7.3 ~10.5 x 10-6 260 ~310
(Vertical Direction)
1.08~1.75 8.9 ~ 9.2 N/A Approx.324 N/A 1
CM360 15.5 x 10-6 360 0.93 N/A N/A N/A 130 1
(*)Coefficient of Linear Thermal Expansion (CLTE) value for CuMo, CPC141 and CPC232 changes depending on the the rolling direction.
(**)Thermal Resistance: The listed values are calculated values. Heating element size 1.0x1.0mm, Heat-spreader thickness 1.0mm, and loss due to the bonding material are not included.
Click here for additional information on the thermal resistance calculation.
  • Nominal value; values may change due to changes in materials or processes.
  • CPC (a registered trademark of A.L.M.T. Corp.) is a heat-spreader substrate with a CuMo layer laminated with Cu layers for the top and bottom surfaces.
  • “KYCM” and “CM360” are Kyocera’s original material codes.
  • “KYCM” is a registered trademark of Kyocera Corporation in Japan and China.

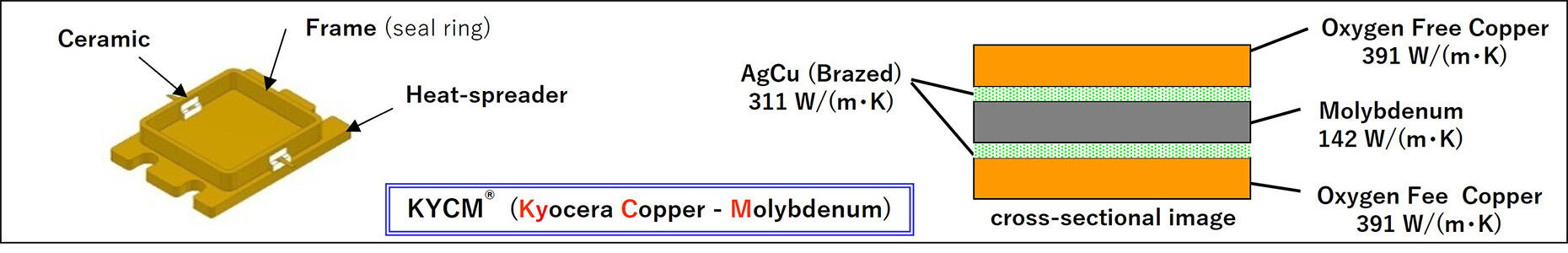

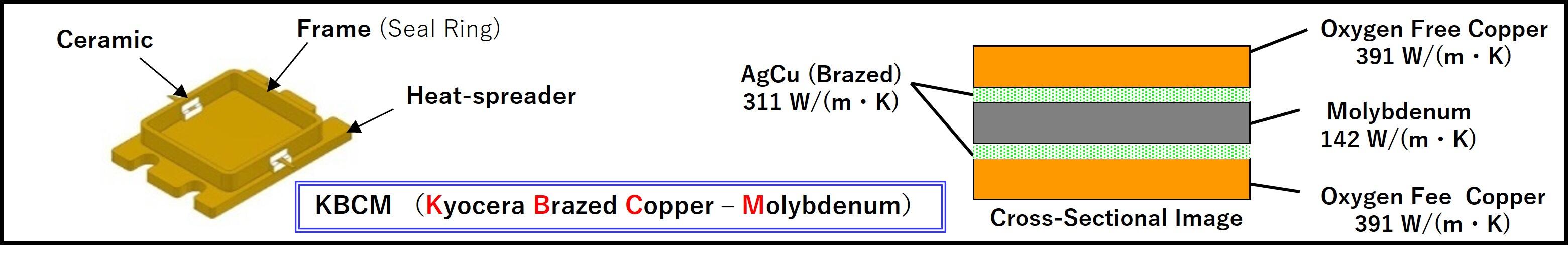

KYCM: Kyocera’s Original Material

KYCM
KYCM® is Kyocera's original material with high thermal conductivity.

Application Examples

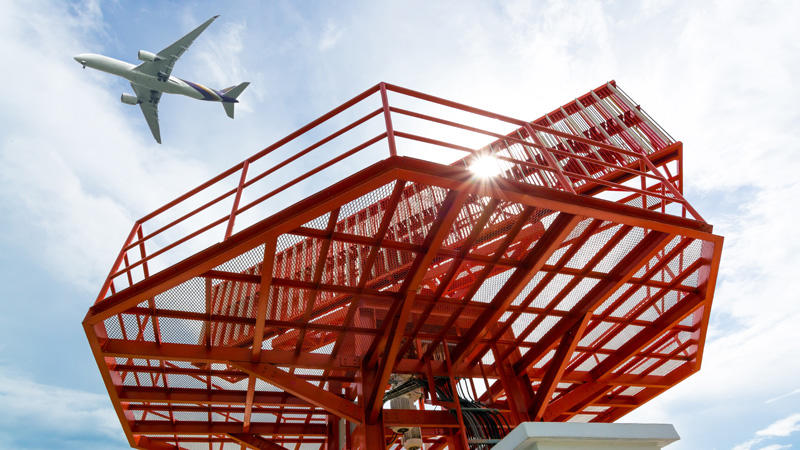

Airport Surveillance Radars
Airport Surveillance Radars

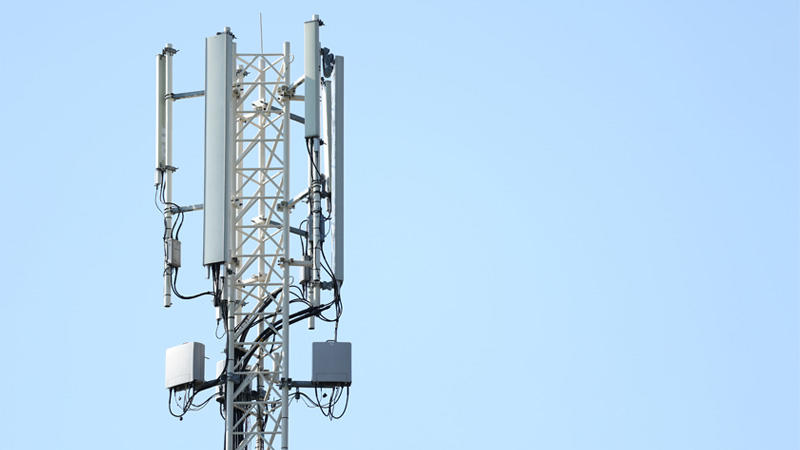

Power Amplifiers for Mobile Base Stations
Power Amplifiers for Mobile Base Stations

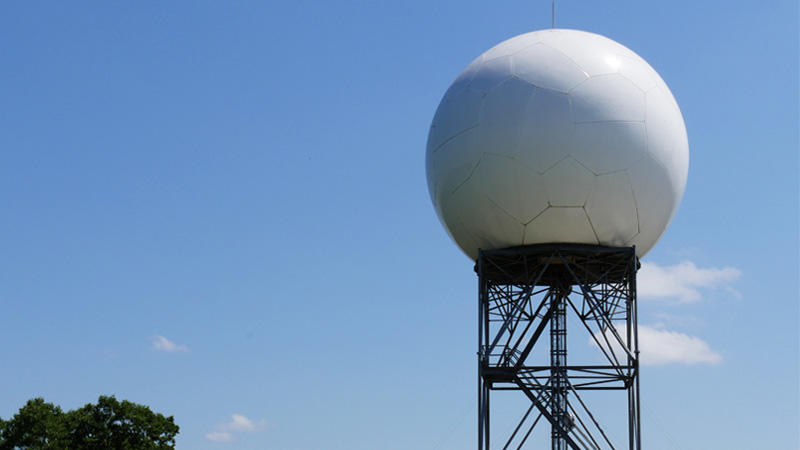

Weather Radars
Weather Radars

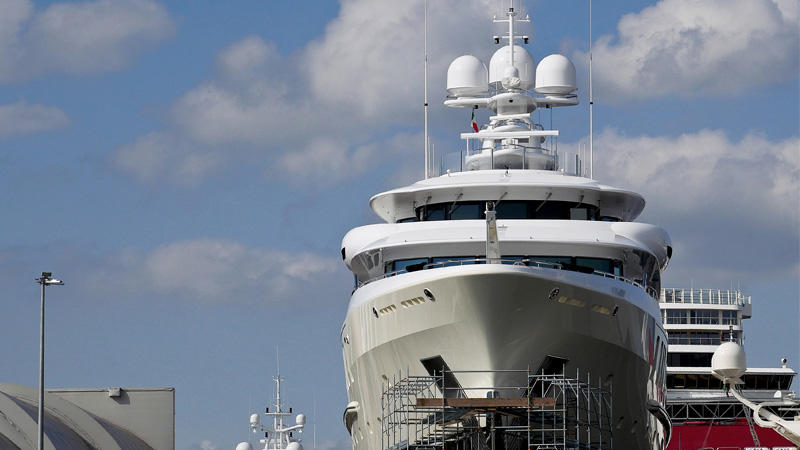

Marine Surveillance Radars
Marine Surveillance Radars
Satellite Communications
Satellite Communications
