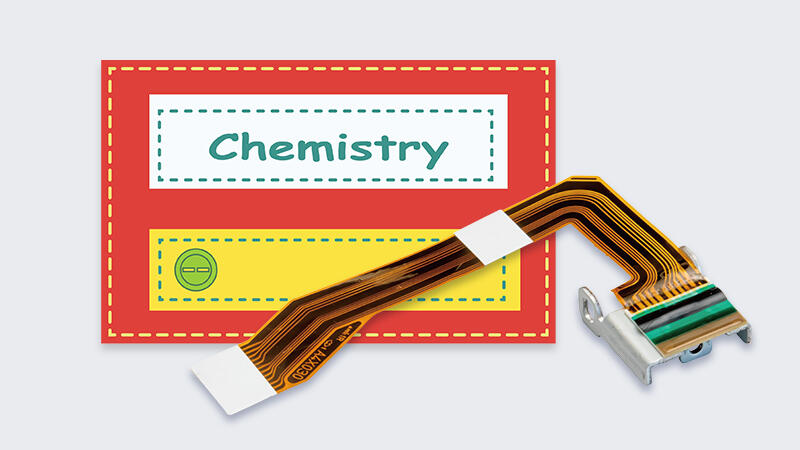

We provide thermal printheads with low power and straight-path printing for electronic stationery used in homes and offices, and for wiring conduits used at construction sites.

Thermal Printhead Lineup for Tape

Model Past
Number		 Product name Size
inch		 Effective
PrintWidth
mm		 Number
of Dots
dot		 Dot
Density
dot/inch		 Average
Resistance
Ω		 Download
Outline

Drawing
Tape Label Flat KSH-32-8TBO1-PFS 1.5 32.0 256 203 700 Outline
 Drawing
Tape Label Flat KSH-22-12PAO1-PFS 1 21.7 256 300 280 Outline
 Drawing
Tube True Edge KSB-40-8GBU1-PFS 2 40.0 320 203 850 Outline
 Drawing
Tube Flat KSL-11-12PBO1-PFS 0.5 10.8 128 300 600 Outline
 Drawing
If you are interested in Thermal Printhead Lineup for Tape Printing, please feel free to contact us!
