Thermal Printhead
Tickets & Commuter Passes / ID Cards & Hospital Cards

Tickets & Commuter Passes / ID Cards & Hospital Cards

Tickets & Commuter Passes / ID Cards & Hospital Cards

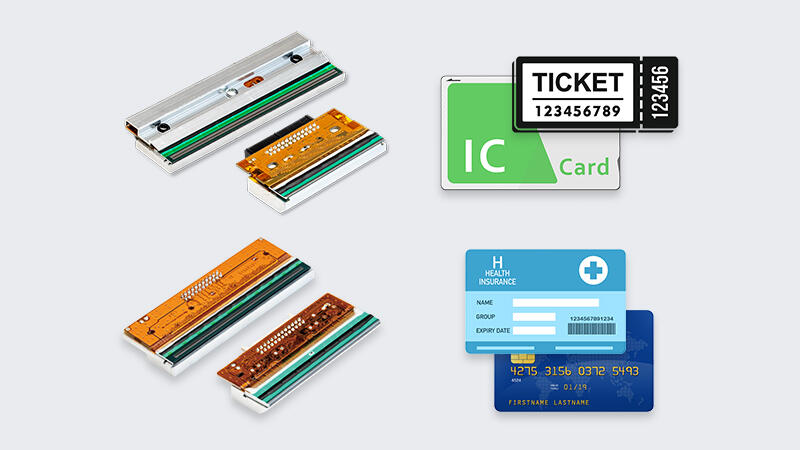

Our thermal printheads provide crisp photo quality, high definition, and straight path required for printers of ID cards, membership cards, driver's licenses, and employee ID cards.

Thermal Printhead Lineup for Tickets, Commuter Passes, ID Cards & Hospital Cards

Model Past
Number
Product name Size
inch
Effective
PrintWidth
mm
Number
of Dots
dot
Dot
Density
dot/inch
Average
Resistance
Ω
Download
Outline

Drawing
Color True Edge KPE-57-12GBX4-PFS 2 56.9 672 300 3000 Outline Drawing
High Resolution True Edge KPE-57-24GAG4-PFS 2 56.9 1344 600 2850 Outline Drawing
Monochrome True Edge KTE-57-12GBX1-PFS 2 56.9 672 300 1400 Outline Drawing
Re-Transcription Flat KYT-65-12SBX6-PFS 3 65.0 768 300 3000 Outline Drawing
Re-Transcription Flat KBT-65-24SBD6-PFS 3 65.0 1536 600 3500 Outline Drawing
If you are interested in Thermal Printhead for Tickets, Commuter Passes, ID Cards & Hospital Cards, please feel free to contact us!
Download Documents for Kyocera's Thermal Printheads
This document summarizes the detailed mechanism and structure of thermal printheads.
