Ceramic Packages

UHF-Band RFID Tag

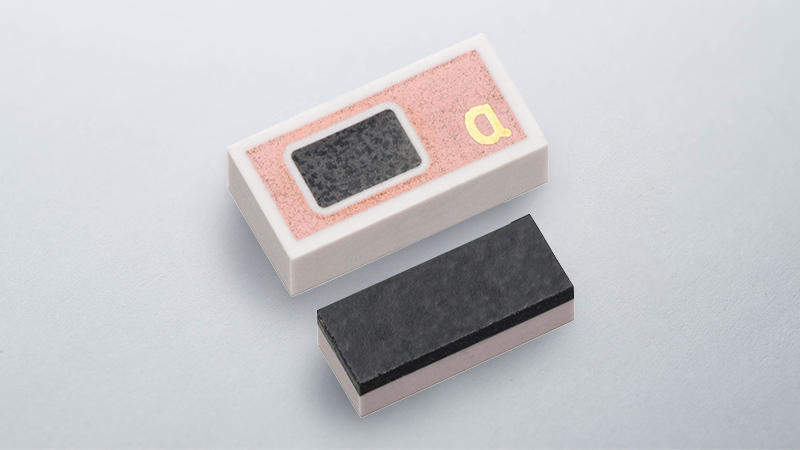

Features of Kyocera's UHF-Band RFID Tags

UHF帯RFIDタグ
  • Ceramic material provides unique resistance to heat, water, and chemicals
  • Miniaturized by embedding antenna into ceramic multilayer package
  • Mountable to metal surfaces

Application Examples

  • Health care: Management of surgical instruments and specimens
  • Industry/Factory Automation: Molding tool management, fixture tool management
  • Parts management (automotive, electronic devices), module/board management (applicable reflow process)

Withstands Autoclaving (on Medical Instruments) *

Withstands Autoclaving (on Medical Instruments) *

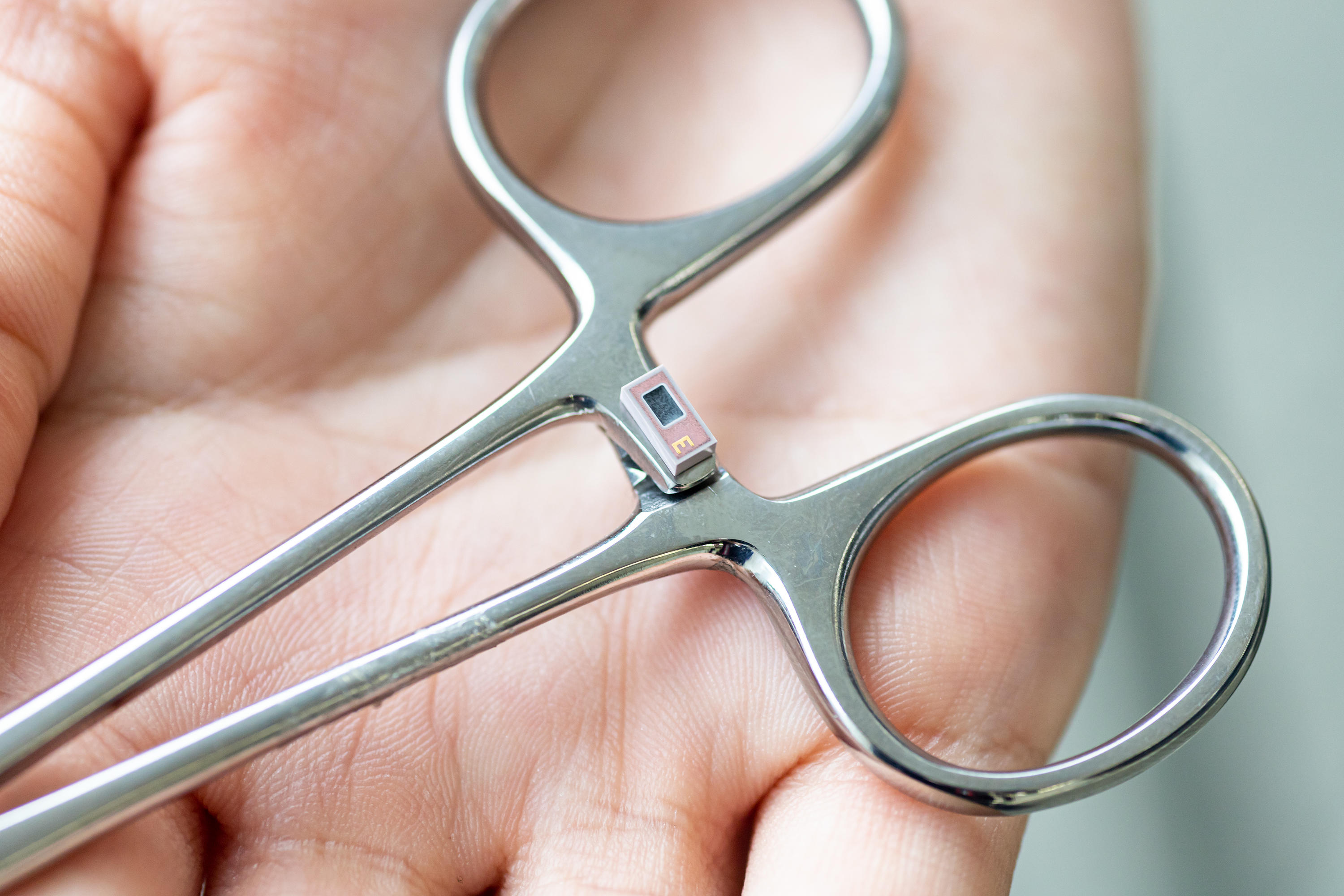

*RFID tag on surgical instrument

Kyocera’s RFID tags possess superior heat, water, and chemical resistance. Designed to withstand autoclaving and various cleaning fluids.*
*Based on Kyocera test results. (See below)

Video on Ceramic RFID Tags

Video on Tag Reliability and Autoclave Sterilization

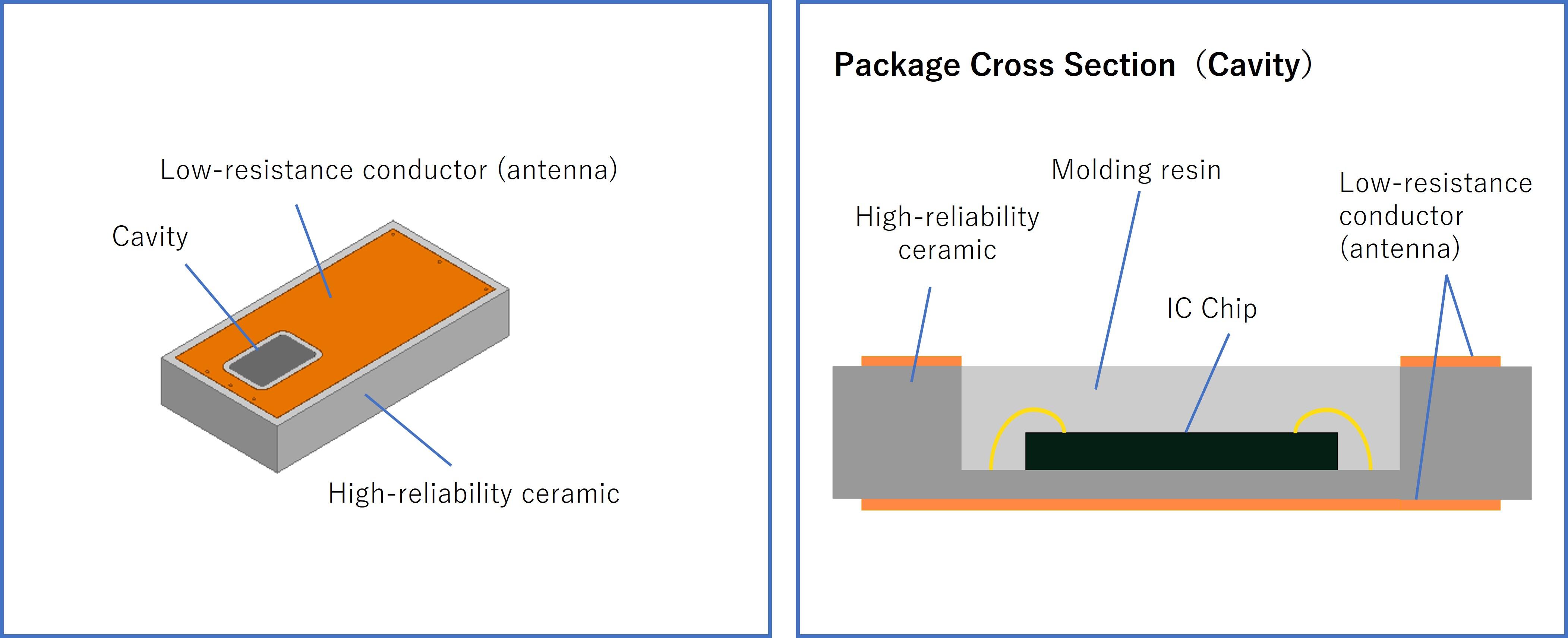

Structure

Structure

Specifications

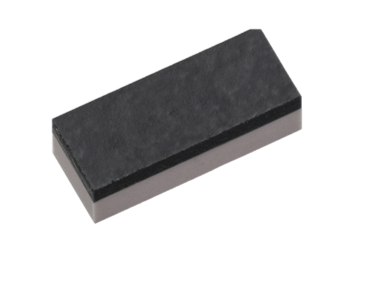

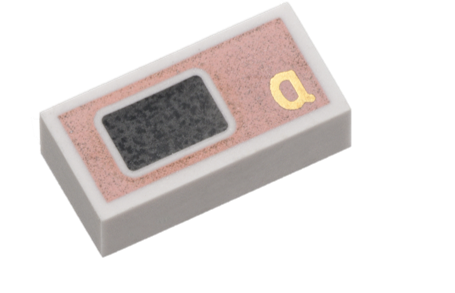

Product Photos
Dimensions 5.0×2.0×1.5mm 6.0×3.0×1.7mm
Communication Range* 250mW
1W
~8cm
~40cm
~10cm
~70cm
Memory Capacity EPC** 128bits 128bits
User 32bits 512bits
Remark  Mountable to Metal
*Verified communication range with RFID tag on center of copper plate, 200mm x 200mm x 0.5mm
(Performance may vary depending on reader/writer, antenna, and operating environment)
**EPC: Electronic Product Code

Reliability Test Results

Test Conditions Result
High-Temperature Storage +175℃ 1000h Pass
Low-Temperature Storage -65℃ 1000h Pass
Temperature Cycle -40℃⇔160℃ 1000cyc Pass
High-Temperature/High-Humidity Storage 85℃85%RH 1000h Pass
Autoclave Evaluation 135℃20min (Sterilization) ⇔ 30min (Dry) Pressure 0.23MPa 1000cycles Pass
*Results are based on Kyocera’s test environment; results in other environments may vary.

Water Resistance and Chemical Resistance Test Results

This test was conducted after immersion in the following liquid for 48 hours.

Test Condition Result
Boiling Water 100℃/48h Pass
Saltwater (5%) 48h Pass
Sodium Carbonate (5%) 48h Pass
Ethanol 48h Pass
Methanol 48h Pass
MEK (Methyl Ethyl Ketone) 48h Pass
Toluene 48h Pass
*Results are based on Kyocera’s test environment; results in other environments may vary.
Note: "pass" indicates that the RFID tag was successfully read.
