Ceramic Optical Connector Components
Kyocera's ceramic-based optical connector components offer high dimensional accuracy. Our lineup includes custom designs as well as standard products, such as ferrules and sleeves.

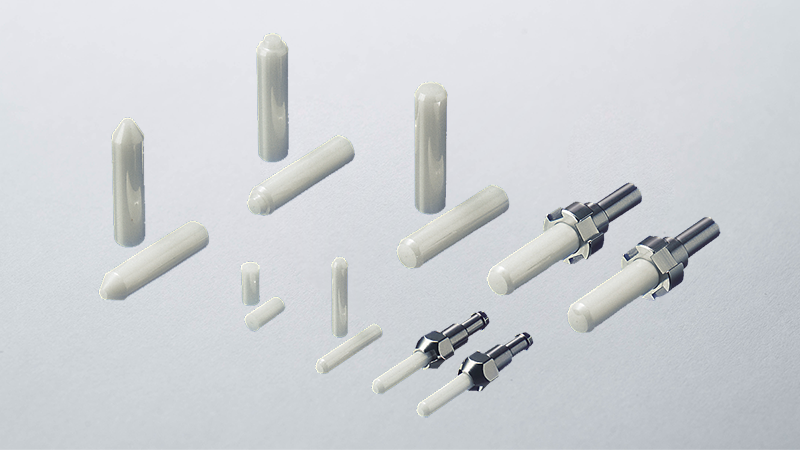

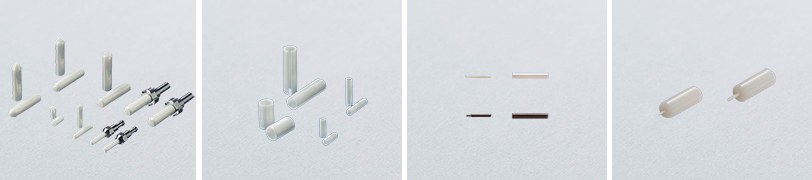

Product Lineup
Features

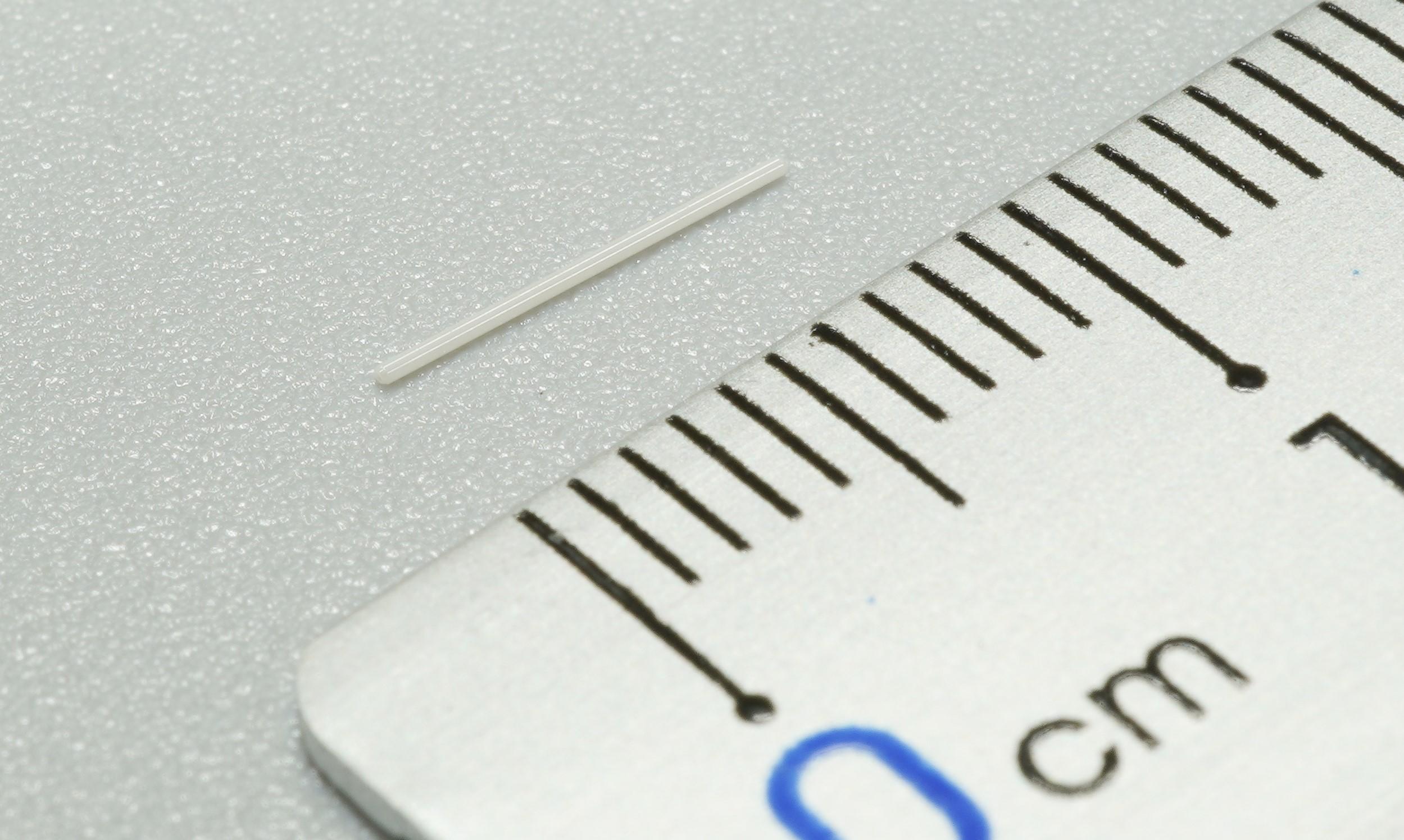

(Example) Ferrule: outer diameter, 0.35mm; inner diameter, 0.125mm; length: 8mm
- High dimensional accuracy
High coaxiality, concentricity, and inner/outer diameter accuracy - Customization is available
We can accommodate various sizes according to your requirements.

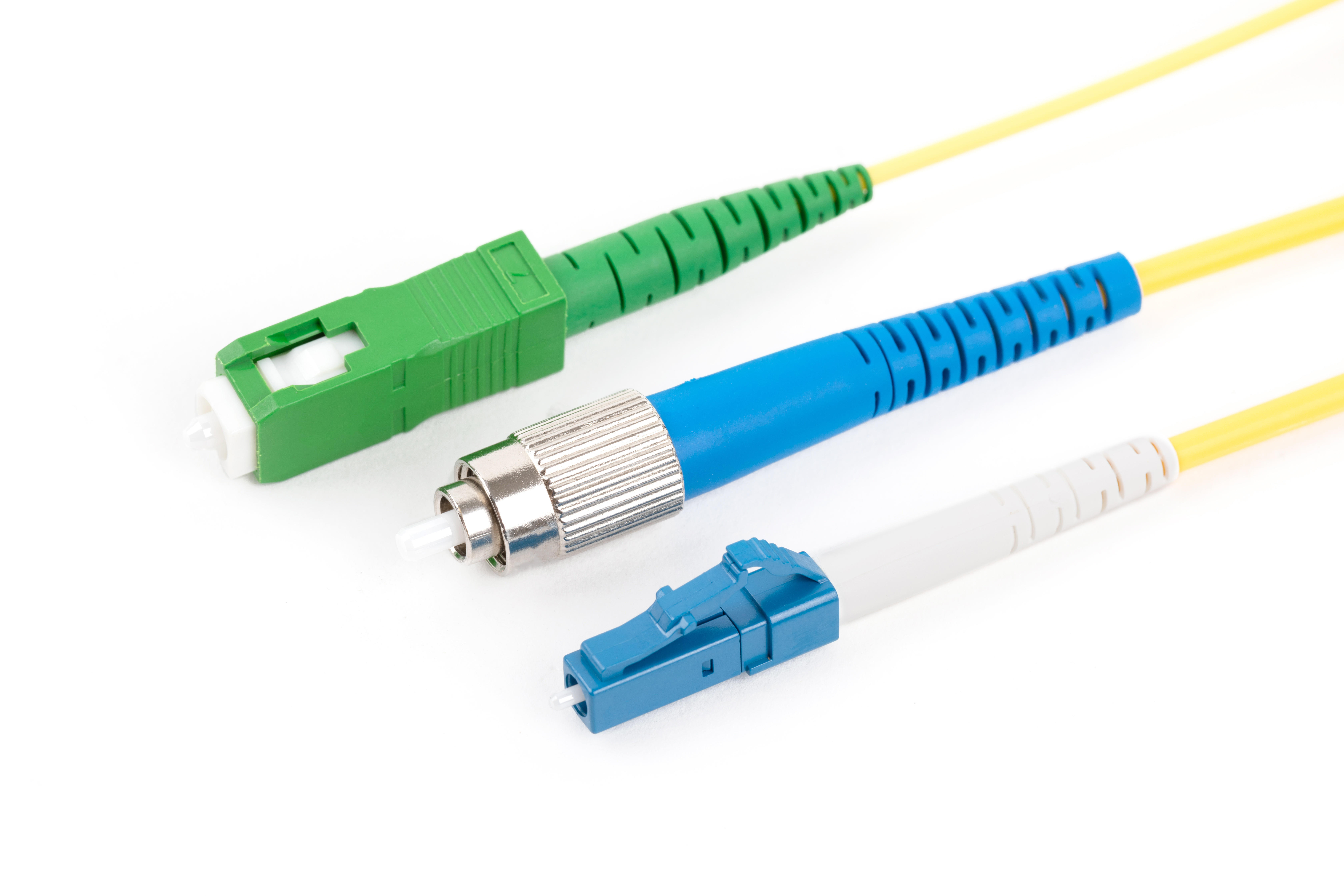

About Optical Connectors

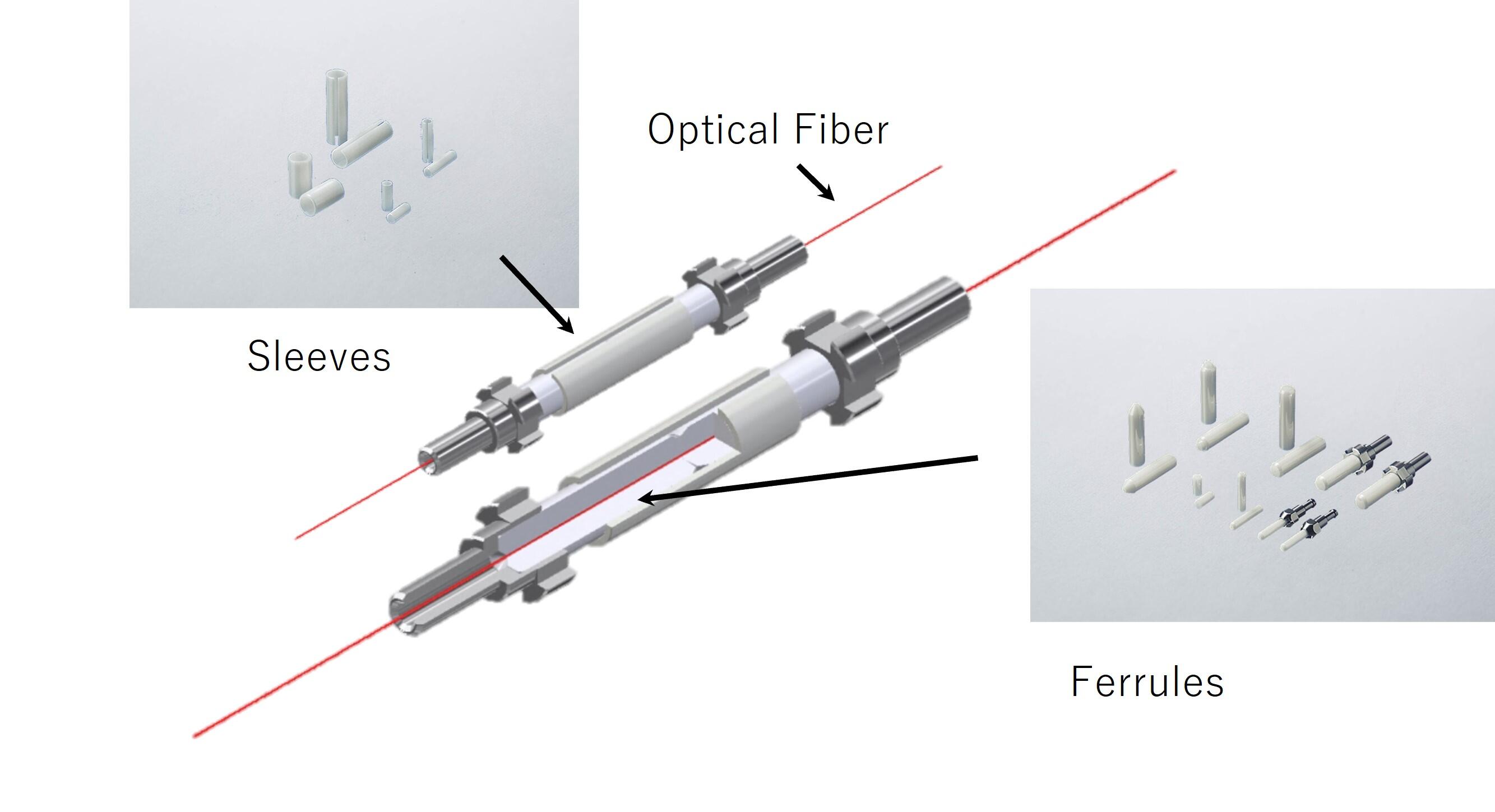

Example of ferrule usage
Optical connectors are used to connect optical fibers. The fiber is fixed within the center of the ferrule, at the tip of the optical connector; by inserting the ferrule into the sleeve within the adapter, the optical fibers are aligned and connected with great precision. Kyocera offers a full lineup of ferrules and sleeves.

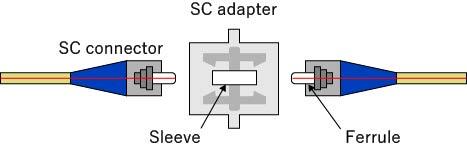

Schematic Diagram
