Kyocera Launches Revolutionary TPA Series Thermal Printhead

Offers industry’s highest speed with exceptional quality for barcode labels in healthcare, food processing, other key markets


  • PRINT
  • SHARE
  • facebooktwitterlinkedin
Kyocera Corporation (President Hideo Tanimoto, "Kyocera") has unveiled the new "TPA Series" thermal printhead, which delivers exceptional printing quality at an impressive speed of 250 mm per second (mm/s) -- setting a new industry benchmark※1 for barcode label applications. These printheads will enhance productivity in many fields, including distribution, food processing, and healthcare. Full-scale production is planned for August 2025.


※1 Among thermal printhead products designed for desktop printers; Kyocera research, July 2025.

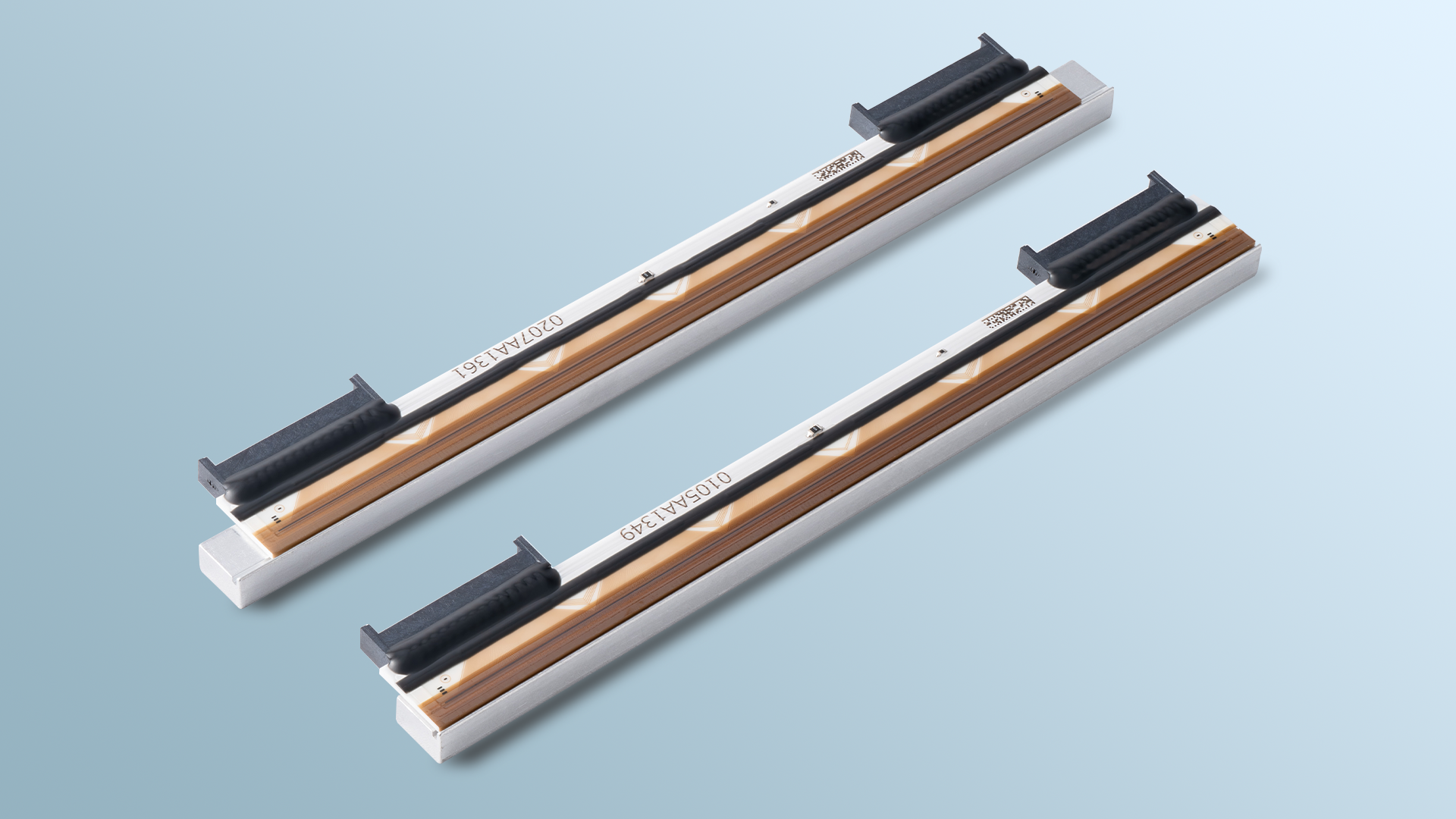

Kyocera TPA Series thermal printhead for barcode labels



Product name "TPA Series" thermal printhead for barcode labels
Model number TPA-108-8TCC2-PFS
TPA-108-8TCC2-PFS2
TPA-108-8TCC2-PFS3
Applications Barcode labels
Desktop printers
Mass production August 2025




■Main Features
  1. High-quality printing at industry's fastest speed (250 mm/sec.).
  2. Expanded head mounting position tolerance.
  3. Excellent environmental resistance and low wear for long-distance running.




■Development Background
With the rising trend toward urbanization in emerging economies and the increasing demand for consumer goods, including food, clothing, and housing, the volume of logistics continues to intensify. In the food processing industry, barcode printing demand has surged with rising requirements to provide product and delivery details, including mandatory nutritional information. Meanwhile,methods to improve operational efficiencies and decrease labor costs are needed worldwide. Faster, more durable thermal printheads for printing labels and barcodes are required for reliable, high-volume and varied applications.


■Product Specifications

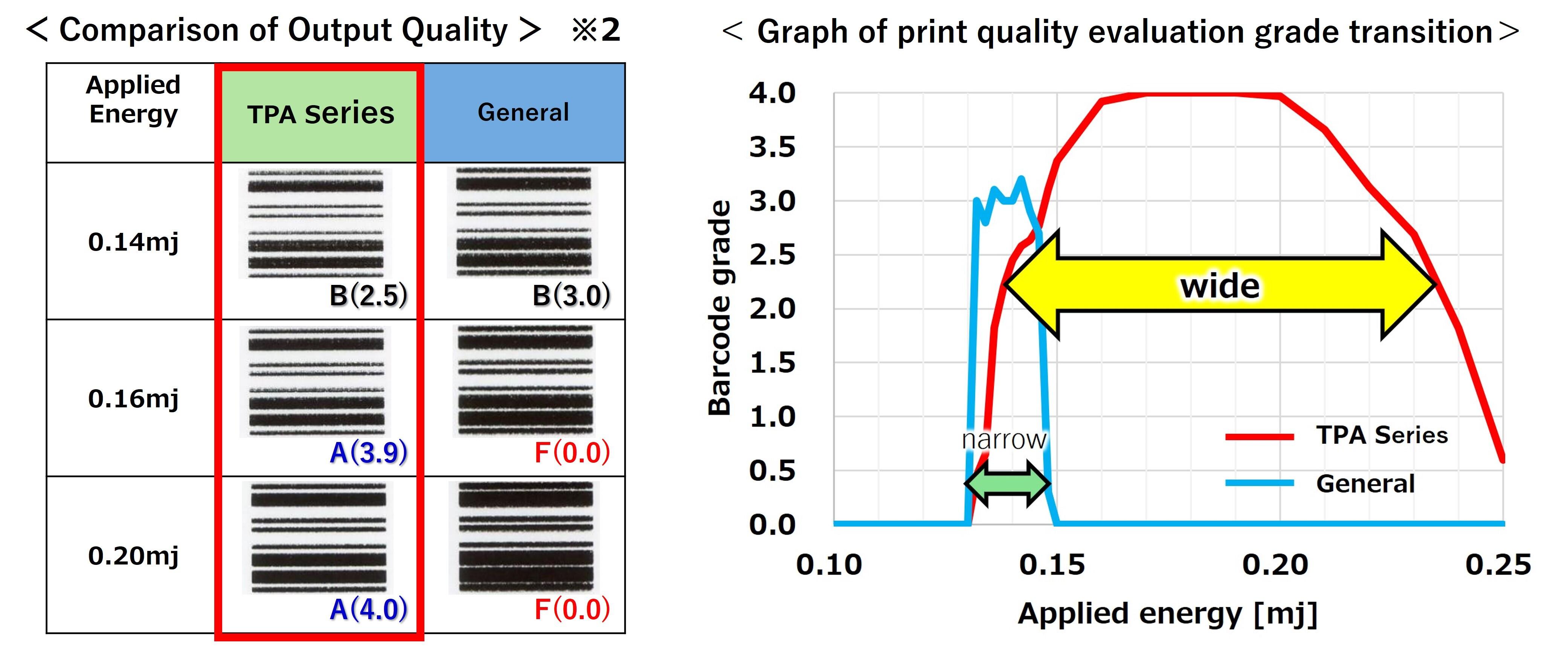

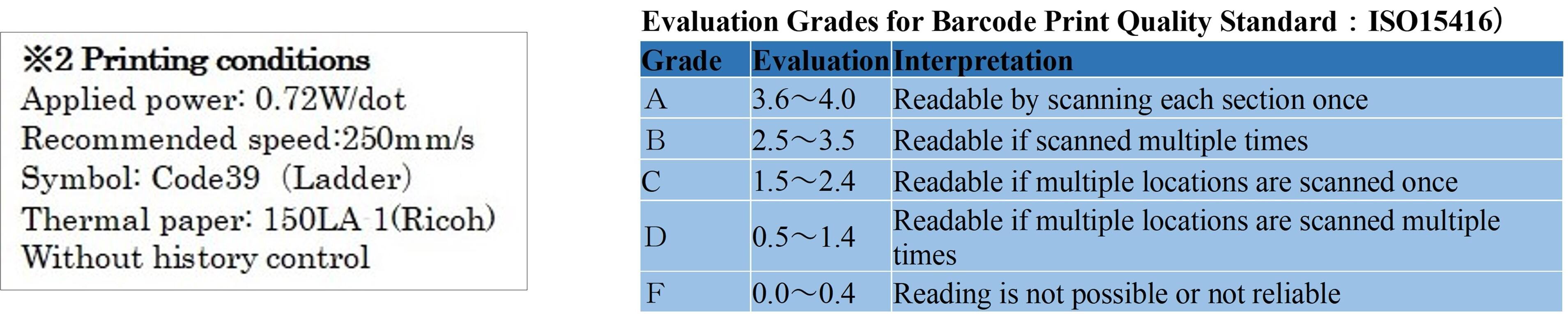

1.High-quality printing at the industry's fastest speed (250 mm/sec.)

Kyocera's unique heating element formation technology has achieved the industry's fastest printing speed of 250 mm/sec. Furthermore, even at high printing speeds, the printing remains clear from start to finish, with higher definition and quality.






2.Flexible head mounting positions support a wide variety of print media.

To achieve high print quality, the conventional head structure has been improved, and heat conduction from the heating element has been enhanced for broader head mounting position tolerance. Stable, high-quality printing is now possible on a wide variety of print media across the entire printing width.

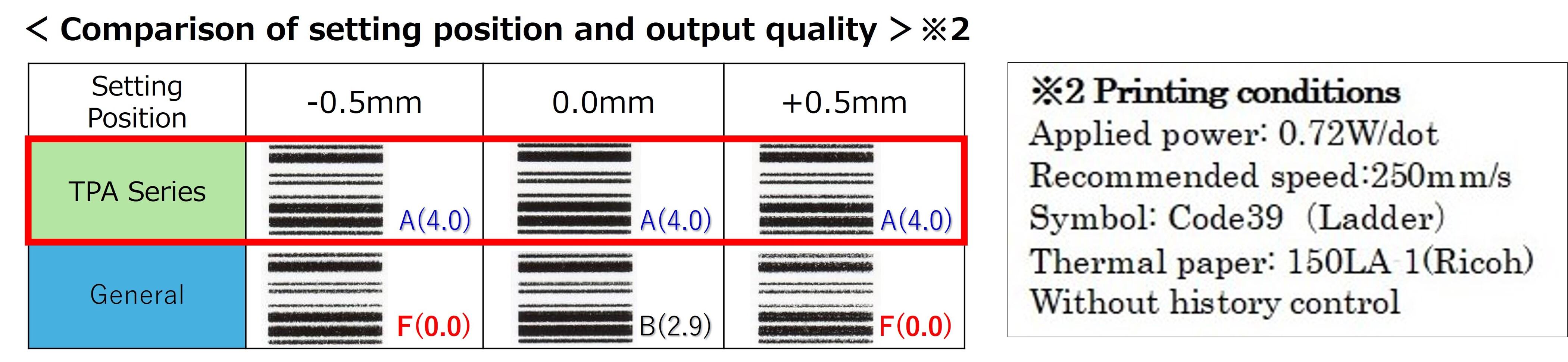

Setting position & condition.jpg

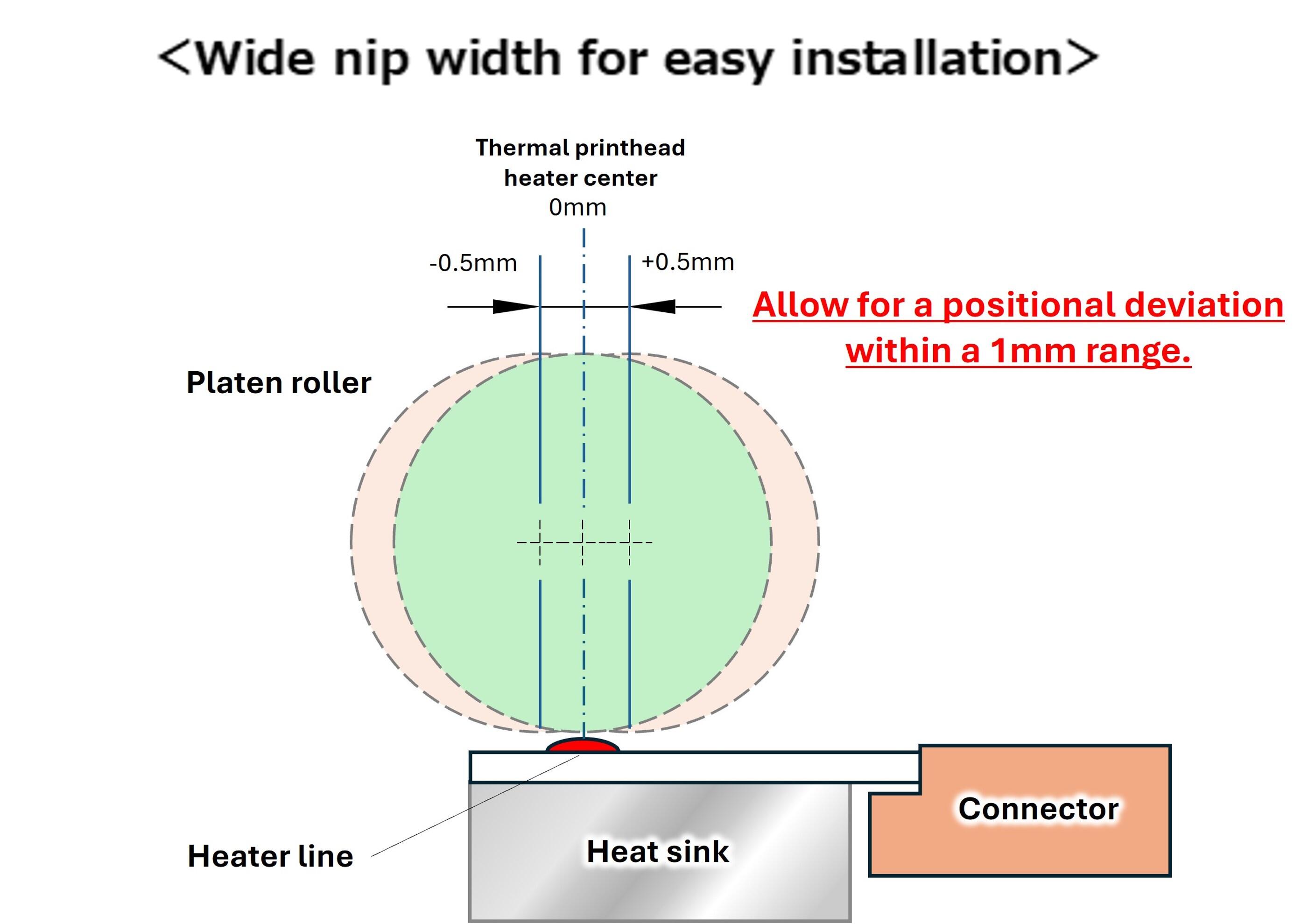

Cross-sectional schematic



3.Withstands severe environmental conditions, offering reduced wear and extended life

The TPA Series provides improved corrosion and wear resistance through Kyocera's unique film deposition technology. As a result, the printhead's superior robustness even under severe environmental conditions contributes to longer life with less wear over extended duty cycles.

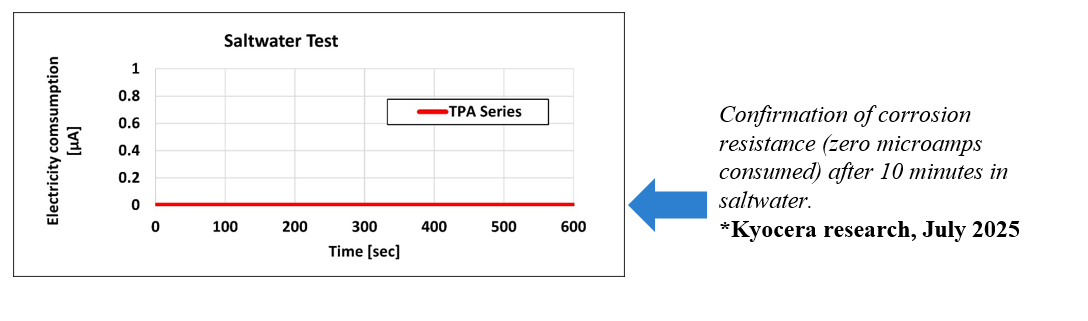

Saltwater Test

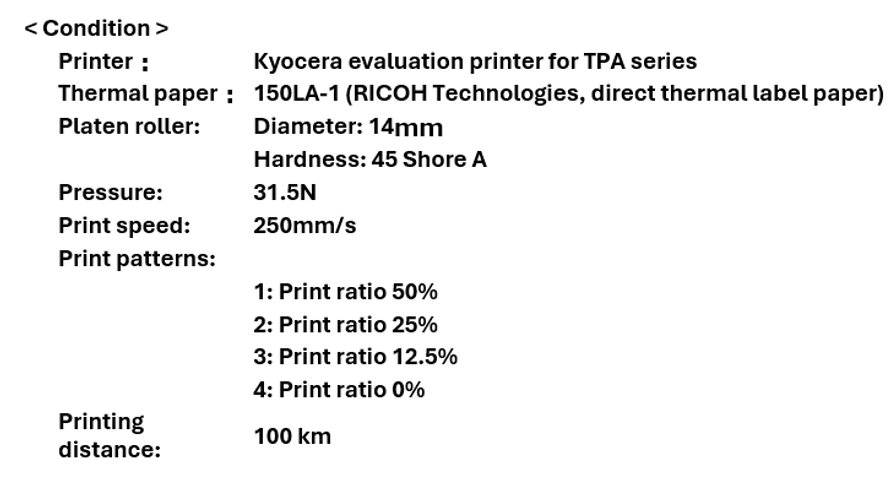

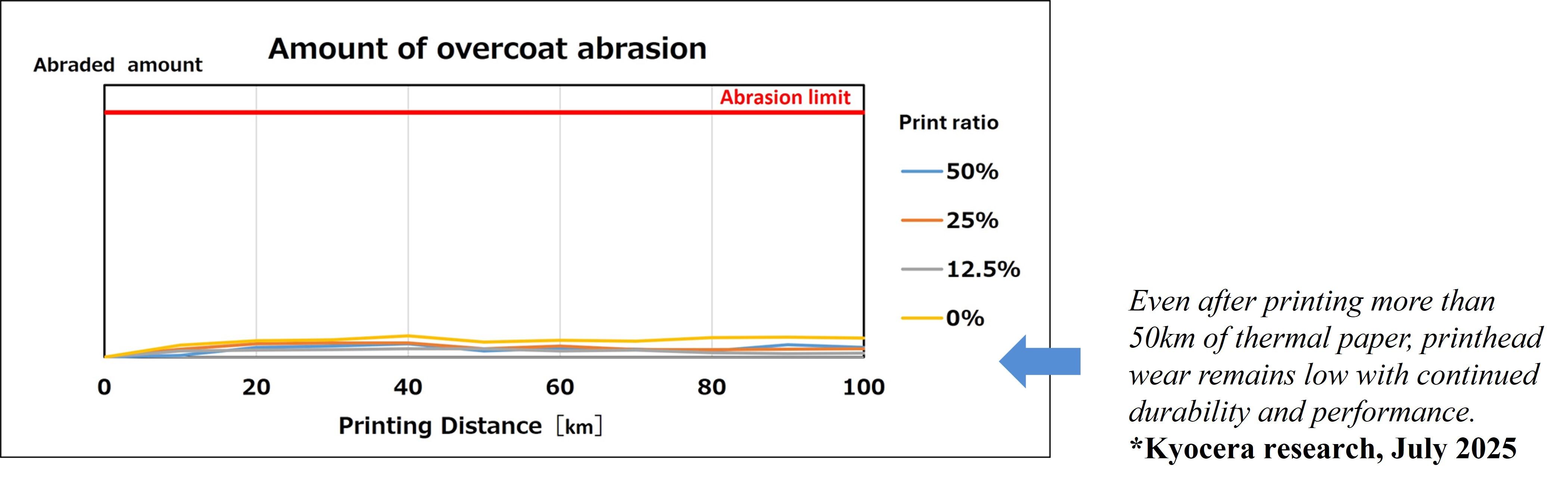

Durability Test



This news release is intended for media purposes, and is current of the date of publication. Information is subject to change without notice.
