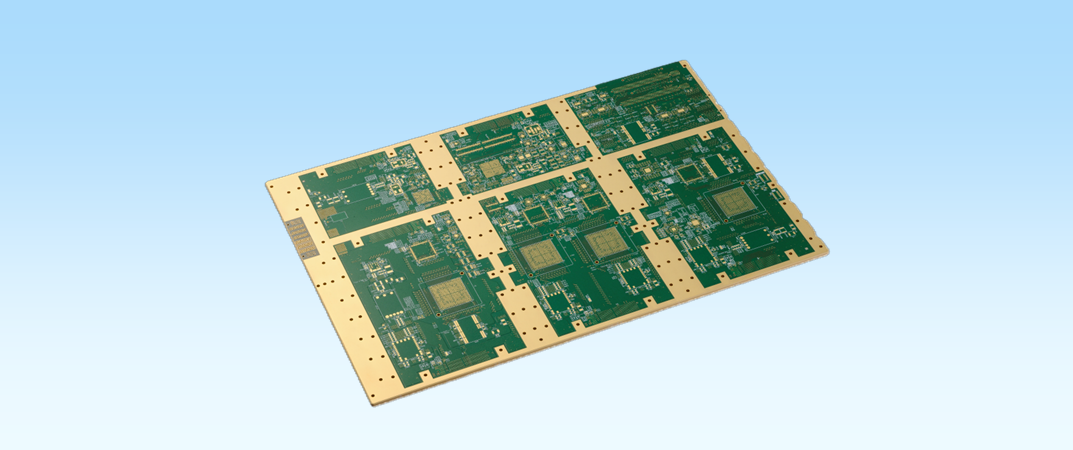

Printed Wiring Boards

AnyLayer PWBs
Line and space are 40μm/40μm, which is one of the most advanced technologies in the market. AnyLayer PWBs will reduce thickness of HDI PWBs and miniaturize HDI PWBs. High reliability has been proven after various stringent tests imposed on mobile devices.
